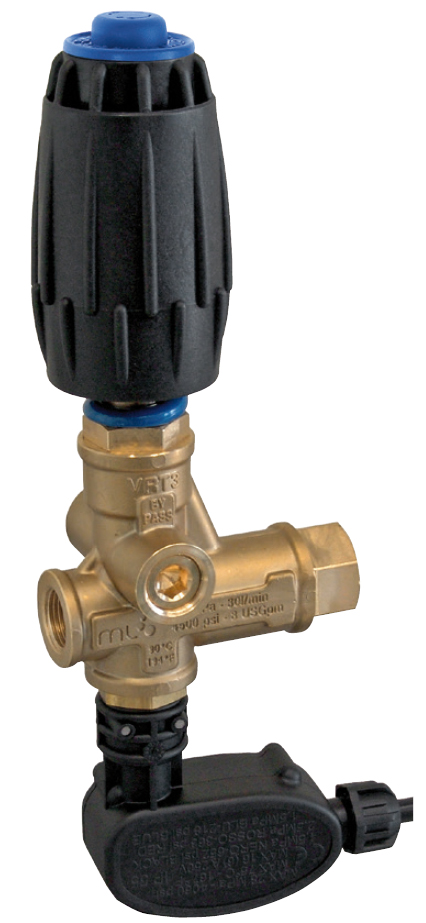

VRT3-P
Designed for reliable performance and precise pressure control, this valve features a hexagonal check valve for smoother operation and dedicated safety systems to protect the equipment. The body with inner housing of the O-ring in the outlet, the mechanical stop safeguarding the micro-switch, and the seal diaphragm ensure enhanced durability and total isolation from potential valve leaks.
RATED FLOW
40 l/min
10.5 USGpm
RATED TEMPERATURE
90 °C
194 °F
MICROSWITCH
250 V
16 (6) A
CABLE LENGTH
1200 mm
47.24 in
SPRING COLOUR
Yellow
Blue
Black
RATED PRESSURE
140 bar
14 MPa
2030 psi
PERMISSIBLE PRESSURE
160 bar
16 MPa
2320 psi
RATED PRESSURE
220 bar
22 MPa
3200 psi
PERMISSIBLE PRESSURE
250 bar
25 MPa
3630 psi
RATED PRESSURE
280 bar
28 MPa
4060 psi
PERMISSIBLE PRESSURE
310 bar
31 MPa
4500 psi
Zoom
CE
IP 55
Features
P/N
Inlet
Outlet
Bypass
Color
Weight
Pz
Repair kit
Pz#1
g
oz
0215010550
G 3/8 F
G 3/8 F
2x G 3/8 F
944
33.3
15
4079900076
10
0215010560
G 3/8 F
G 3/8 F
2x G 3/8 F
944
33.3
15
4079900076
10
4072000007
G 3/8 F
G 3/8 F
2x G 3/8 F
944
33.3
15
4079900077
10
4072000016
G 3/8 F
G 3/8 M
2x G 3/8 F
944
33.3
15
4079900076
10
4072000009
3/8 NPT F
3/8 NPT F
2x 3/8 NPT F
944
33.3
15
4079900077
10

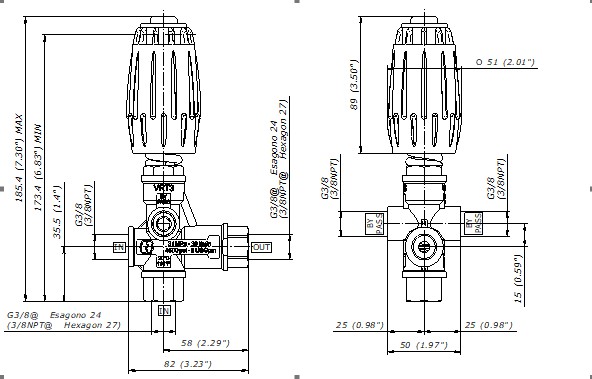

Schemas
