ProductDetail

VRT100-P WITHOUT KNOB

Knob on demand cod. 4139500027, to be ordered separately.


RATED FLOW
100 l/min
26.4 USGpm
RATED TEMPERATURE
90 °C
194 °F
MICROSWITCH
250 V
6 (2) A
CABLE LENGTH
1200 mm
47.24 in
SPRING COLOUR
Yellow
Blue
RATED PRESSURE
170 bar
17 MPa
2465 psi
PERMISSIBLE PRESSURE
190 bar
19 MPa
2760 psi
PRESSIONE MINIMA INTERVENTO
30 bar
3 MPa
435 psi
RATED PRESSURE
320 bar
32 MPa
4640 psi
PERMISSIBLE PRESSURE
350 bar
35 MPa
5075 psi
PRESSIONE MINIMA INTERVENTO
50 bar
5 MPa
725 psi

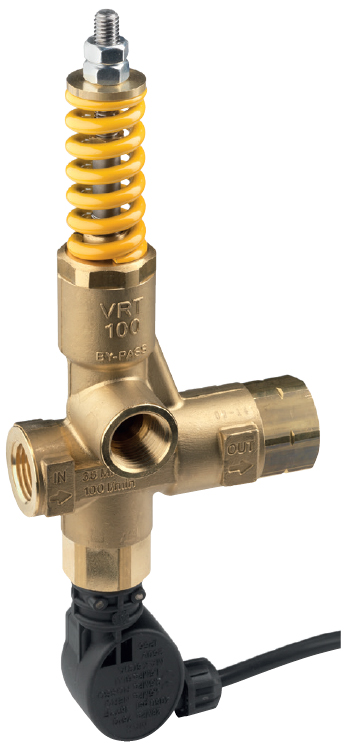

Photo of the product VRT100-P WITHOUT KNOB
Zoom
Photo preview of the product VRT100-P WITHOUT KNOB
Feature of the product VRT100-P WITHOUT KNOB
CE
Feature of the product VRT100-P WITHOUT KNOB
IP 55
Features
Features
P/N
Inlet
Outlet
Bypass
Color
Weight
Pz
Repair kit
Pz#1
g oz
4072000088
G 1/2 F
G 1/2 F
G 1/2 F
1370 48.33
1
4079900039
1
4072000089
1/2 NPT F
1/2 NPT F
1/2 NPT F
1355 47.8
1
4079900039
1
4072000090
1/2 NPT F
1/2 NPT F
1/2 NPT F
1370 48.33
1
4079900039
1
4072000087
G 1/2 F
G 1/2 F
G 1/2 F
1355 47.8
1
4079900039
1
Photo of the product VRT100-P WITHOUT KNOB

Accessories

Optional
Optional accessories
Optional accessory for the product VRT100-P WITHOUT KNOB
P/N VOLANTINO per VRT
Optional accessory for the product VRT100-P WITHOUT KNOB
P/N VOLANTINO per VRT
