VRC25-P

This hydraulically compensated unloader provides precise pressure control, reducing pressure peaks when opening the gun and minimizing operator backstroke. The by-pass reactivation from 40 to 50 bar (4–5 MPa / 580–725 psi), the hexagonal check valve and the body with inner housing of the O-ring in the outlet ensure high reliability and durability, while the mechanical stop effectively safeguards the micro switch.

RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
90 °C
194 °F
MICROSWITCH
250 V
6 (2) A
KNOB COLOUR
Grey
Black
RATED PRESSURE
220 bar
22 MPa
3200 psi
PERMISSIBLE PRESSURE
250 bar
25 MPa
3630 psi
RATED PRESSURE
280 bar
28 MPa
4060 psi
PERMISSIBLE PRESSURE
310 bar
31 MPa
4500 psi
CABLE LENGTH
1200 mm
47.24 in
Photo of the product VRC25-P
Zoom
Photo preview of the product VRC25-P
Feature of the product VRC25-P
CE
Feature of the product VRC25-P
IP 55
Features
Schemas
Features
P/N
Inlet
Outlet
Bypass
Color
Weight
Pz
Repair kit
Pz#1
g oz
0215010490
G 3/8 F
G 3/8 F
2x G 3/8 F
880 31
15
4079900010
10
Tecomec new product
4071800013
G 3/8 F
G 3/8 F
2x G 3/8 F
880 31
15
4079900010
10
0215010530
3/8 NPT F
3/8 NPT F
2x3/8 NPT F
880 31
15
4079900010
10
Tecomec new product
4071800014
3/8 NPT F
3/8 NPT F
2x3/8 NPT F
880 31
15
4079900010
10
Tecomec new product
4071800016
3/8 NPT M
3/8 NPT F
2x3/8 NPT F
880 31
15
4079900010
10

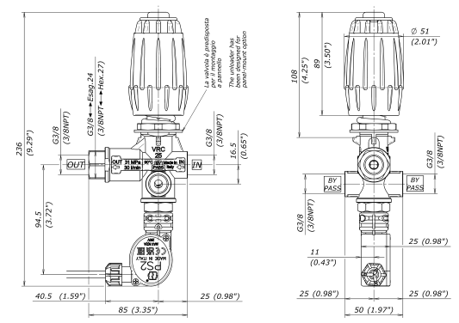

Schemas
Schemes of the product VRC25-P
Photo of the product VRC25-P
Schemes of the product VRC25-P
