QUICK COUPLING NOZZLE WITH "CERAMIC TIP"

For rated flow refer to the Table A - see Download

RATED PRESSURE
310 bar
31 MPa
4500 psi
PERMISSIBLE PRESSURE
350 bar
35 MPa
5075 psi
RATED TEMPERATURE
150 °C
302 °F

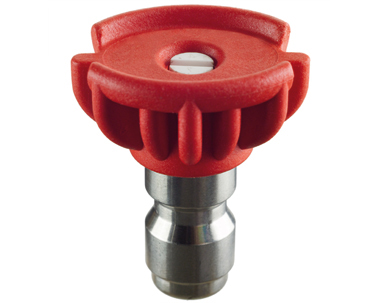

Photo of the product QUICK COUPLING NOZZLE WITH
Zoom
Photo preview of the product QUICK COUPLING NOZZLE WITH
Features
Downloads
Features
P/N
Connection
Angle
Nozzle size
Weight
Pz#1
Size
bar 70
bar 140
bar 220
bar 270
bar 350
Pz
g oz
0124004100
Q.C.
0°
025
21 0,74
10
0124004200
Q.C.
0°
03
21 0,74
10
0124004010
Q.C.
15°
02
21 0,74
10
0124004110
Q.C.
15°
025
21 0,74
10
0124004210
Q.C.
15°
03
21 0,74
10
0124004310
Q.C.
15°
035
21 0,74
10
035
6.62
9.35
11.47
13.25
14.8
10
0124004410
Q.C.
15°
04
21 0,74
10
04
7.57
10.71
13.1
15.14
16.92
10
0124004510
Q.C.
15°
045
21 0,74
10
045
8.52
12.04
14.76
17.03
19.04
10
0124004610
Q.C.
15°
05
21 0,74
10
05
9.46
13.4
16.39
18.93
21.16
10
0124004710
Q.C.
15°
055
21 0,74
10
055
10.41
14.73
18.02
20.82
23.28
10
0124004810
Q.C.
15°
06
21 0,74
10
0124004910
Q.C.
15°
065
21 0,74
10
0124005010
Q.C.
15°
07
21 0,74
10
0124005110
Q.C.
15°
075
21 0,74
10
0124005210
Q.C.
15°
08
21 0,74
10
0124005310
Q.C.
15°
09
21 0,74
10
0124005410
Q.C.
15°
10
21 0,74
10
0124005510
Q.C.
15°
11
21 0,74
10
0124005610
Q.C.
15°
12
21 0,74
10
0124005710
Q.C.
15°
15
21 0,74
10
0124004020
Q.C.
25°
02
21 0,74
10
0124004120
Q.C.
25°
025
21 0,74
10
0124004220
Q.C.
25°
03
21 0,74
10
0124004320
Q.C.
25°
035
21 0,74
10
0124004420
Q.C.
25°
04
21 0,74
10
0124004520
Q.C.
25°
045
21 0,74
10
0124004620
Q.C.
25°
05
21 0,74
10
0124004720
Q.C.
25°
055
21 0,74
10
0124004820
Q.C.
25°
06
21 0,74
10
0124004920
Q.C.
25°
065
21 0,74
10
0124005020
Q.C.
25°
07
21 0.74
10
0124005120
Q.C.
25°
075
21 0,74
10
0124005220
Q.C.
25°
08
21 0,74
10
0124005320
Q.C.
25°
09
21 0,74
10
0124005420
Q.C.
25°
10
21 0,74
10
0124005520
Q.C.
25°
11
21 0,74
10
0124005620
Q.C.
25°
12
21 0,74
10
0124005720
Q.C.
25°
15
21 0,74
10
0124004030
Q.C.
40°
02
21 0,74
10
0124004130
Q.C.
40°
025
21 0,74
10
0124004230
Q.C.
40°
03
21 0,74
10
0124004330
Q.C.
40°
035
21 0,74
10
0124004430
Q.C.
40°
04
21 0,74
10
0124004530
Q.C.
40°
045
21 0,74
10
0124004630
Q.C.
40°
05
21 0,74
10
0124004730
Q.C.
40°
055
21 0,74
10
0124004830
Q.C.
40°
06
21 0,74
10
0124004930
Q.C.
40°
065
21 0,74
10
0124005130
Q.C.
40°
075
21 0,74
10
0124005230
Q.C.
40°
08
21 0,74
10
0124005330
Q.C.
40°
09
21 0,74
10
