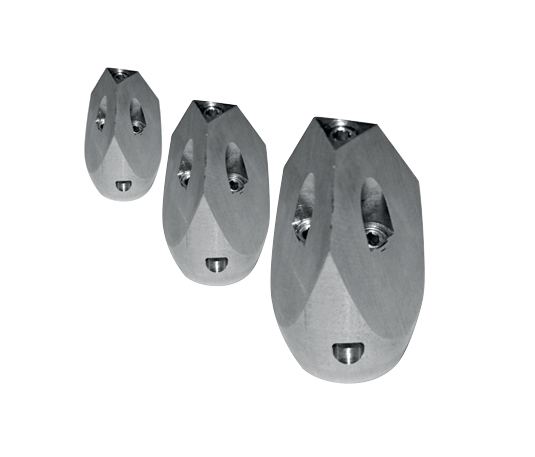

REACTION NOZZLES SNT
aisi 303 stainless stee
Material: aisi 303 stainless steel.
For nozzle specification refer to the Table A - see Download
NOT RECOMMENDED USE WITH PLASTIC PIPES OR SHARP TURNS
PERMISSIBLE PRESSURE
300 bar
30 MPa
4350 psi
RATED TEMPERATURE
160 °C
320 °F
Zoom
Features
P/N
Connection
Rear nozzles No.
Side nozzles No.
Nozzle size
Dimension ØxL mm
Working diameter
Weight
Pz
mm
g
oz
4052600119
G 1/8 F
3
4
11
18 x 30
20 ÷ 60
30
1.06
1
4052600120
G 1/8 F
3
4
12
18 x 30
20 ÷ 60
30
1.06
1
4052600121
G 1/8 F
3
4
15
18 x 30
20 ÷ 60
30
1.06
4052600122
G 1/8 F
3
4
20
18 x 30
20 ÷ 60
30
1.06
1
4052600123
G 1/8 F
3
4
25
18 x 30
20 ÷ 60
30
1.06
1
4052600124
G 1/8 F
3
4
30
18 x 30
20 ÷ 60
30
1.06
1
4052600125
G 1/8 F
3
4
35
18 x 30
20 ÷ 60
30
1.06
1
4052600126
G 1/4 F
3
4
11
20 x 35
25 ÷ 80
40
1.41
1
4052600127
G 1/4 F
3
4
12
20 x 35
25 ÷ 80
40
1.41
1
4052600128
G 1/4 F
3
4
15
20 x 35
25 ÷ 80
40
1.41
1
4052600129
G 1/4 F
3
4
20
20 x 35
25 ÷ 80
40
1.41
1
4052600130
G 1/4 F
3
4
25
20 x 35
25 ÷ 80
40
1.41
1
4052600131
G 1/4 F
3
4
30
20 x 35
25 ÷ 80
40
1.41
1
4052600132
G 1/4 F
3
4
35
20 x 35
25 ÷ 80
40
1.41
1
4052600133
G 3/8 F
3
4
11
25 x 45
30 ÷ 120
70
2.47
1
4052600134
G 3/8 F
3
4
12
25 x 45
30 ÷ 120
70
2.47
1
4052600135
G 3/8 F
3
4
15
25 x 45
30 ÷ 120
70
2.47
1
4052600136
G 3/8 F
3
4
20
25 x 45
30 ÷ 120
70
2.47
1
4052600137
G 3/8 F
3
4
25
25 x 45
30 ÷ 120
70
2.47
1
4052600138
G 3/8 F
3
4
30
25 x 45
30 ÷ 120
70
2.47
1
4052600139
G 3/8 F
3
4
35
25 x 45
30 ÷ 120
70
2.47
1
