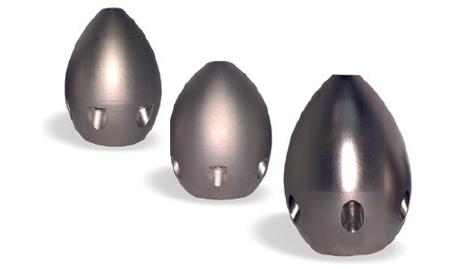

REACTION NOZZLES SNO
Material: steel nickel-plated
For nozzle specification refer to the Table A - see Download.
PERMISSIBLE PRESSURE
300 bar
30 MPa
4350 psi
RATED TEMPERATURE
160 °C
320 °F
Zoom
Features
P/N
Connection
Rear nozzles No.
Front nozzles No.
Nozzle size

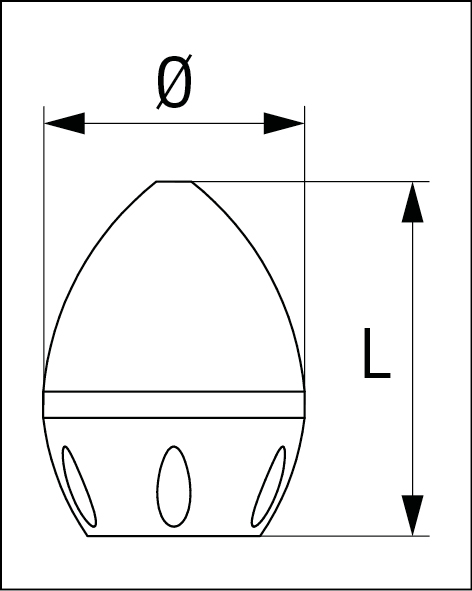

Dimension ØxL mm
Working diameter
Weight
Pz
Repair kit
Pz#2
Nozzles cup repair kit
Pz#3
mm
g
oz
4052600015
G 1/2 F
6 - M 6x8
1 - M 6x8
20
42 x 58
50 ÷ 100
300
10.5
1
4059900032
1
U00001030
1
4052600016
G 1/2 F
6 - M 6x8
1 - M 6x8
30
42 x 58
50 ÷ 100
300
10.5
1
4059900033
1
U00001030
1
4052600017
G 3/4 F
6 - M 6x8
1 - M 6x8
30
48 x 60
60 ÷ 150
360
12.7
1
4059900033
1
U00001030
1
4052600024
G 3/4 F
6 - M 6x8
1 - M 6x8
40
48 x 60
60 ÷ 150
360
12.7
1
4059900034
1
U00001030
1
4052600025
G 3/4 F
6 - M 6x8
1 - M 6x8
50
48 x 60
60 ÷ 150
360
12.7
1
4059900035
1
U00001030
1
4052600026
G 3/4 F
6 - M 6x8
1 - M 6x8
60
48 x 60
60 ÷ 150
360
12.7
1
4059900036
1
U00001030
1
4052600027
G 1 F
6 - M 6x8
1 - M 6x8
50
60 x 78
100 ÷ 300
800
28.2
1
4059900035
1
U00001030
1
4052600028
G 1 F
6 - M 6x8
1 - M 6x8
60
60 x 78
100 ÷ 300
800
28.2
1
4059900036
1
U00001030
1
4052600029
G 1 F
6 - M 6x8
1 - M 6x8
80
60 x 78
100 ÷ 300
800
28.2
1
4059900037
1
U00001030
1
Schemas
Downloads
