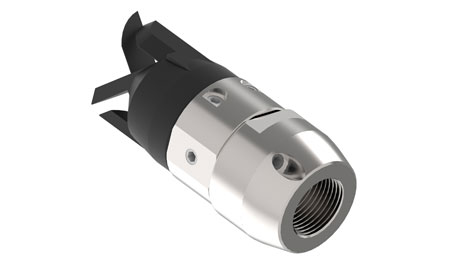

REACTION NOZZLES SNKH "ROTATING"
Material: hardened polished stainless steel AISI A420.
For nozzle specification refer to the Table A - see Download
Centering guide accessory is required for working diameter over Ø100 mm (3.93 in).
PERMISSIBLE PRESSURE
300 bar
30 MPa
4350 psi
RATED FLOW
160 °C
320 °F
Zoom
Features
P/N
Connection
Rear nozzles No.
Side nozzles No.
Nozzle size
Dimension ØxL mm
Working diameter
Weight
Pz
Repair kit
Pz#2
mm
g
oz
4052800040
G 1/2 F
3 - M 6x6
6 - M 6x6
15
38 x 92
50 ÷ 150*
400
14.1
1
4059900108
1
4052800041
G 1/2 F
3 - M 6x6
6 - M 6x6
20
38 x 92
50 ÷ 150*
400
14.1
1
4059900046
1
4052800042
G 1/2 F
3 - M 6x6
6 - M 6x6
30
38 x 92
50 ÷ 150*
400
14.1
1
4059900047
1
4052800043
G 3/4 F
6 - M 6x6
4 - M 6x6
30
52 x 127
100 ÷ 200*
800
28.2
1
4059900048
1
4052800044
G 3/4 F
6 - M 6x6
4 - M 6x6
40
52 x 127
100 ÷ 200*
800
28.2
1
4059900049
1
4052800045
G 1 F
6 - M 6x6
4 - M 6x6
50
52 x 130
100 ÷ 200*
800
28.2
1
4059900050
1
4052800046
G 1 F
6 - M 6x6
4 - M 6x6
70
52 x 130
100 ÷ 200*
800
28.2
1
4059900051
1

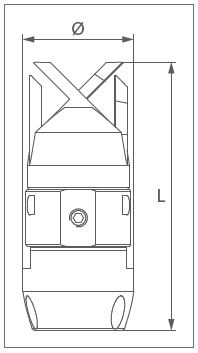

Schemas
Downloads
