TZ100
Outlet pressure zeroing upon gun closure.
Gradual pressure recovery upon gun reopening, granting great recoil reduction.
Easy thermal engine start, thanks to the gradual pressure recovery.
When the pressure gun is closed, the extremely low residual pressure in the
outlet hose grants greater safety for the user and for others nearby, as well as
increased maneuverability.
Suitable for wall mounting using n. 2 screws.
RATED FLOW
from 2.91 to 10.57 psi
RATED PRESSURE
1000 bar
100 MPa
14500 psi
PERMISSIBLE PRESSURE
1100 bar
110 MPa
16000 psi
RATED TEMPERATURE
90 °C
194 °F
BY PASS PRESSURE
15 ÷ 20 bar
1,5 ÷ 2,0 MPa
217.6 ÷ 290 psi
INLET/OUTLET/BY PASS
G 3/8 F
Zoom
New
Features
P/N
Rated flow
Weight
Pz
l/min
USGpm
g
oz
4072201012
11,5 ÷ 13
3.04 ÷ 3.43
6500
229.3
1
4072201013
13 ÷ 15
3.43 ÷ 3.96
6500
229.3
1
4072201014
15 ÷ 18
3.96 ÷ 4.76
6500
229.3
1
4072201015
18 ÷ 21
4.76 ÷ 5.55
6500
229.3
1
4072201016
21 ÷ 25
5.55 ÷ 6.60
6500
229.3
1
4072201017
25 ÷ 30
6,6 ÷ 7,9
6500
229.3
1
4072201018
30 ÷ 35
7,9 ÷ 9,3
6500
229.3
1
4072201019
35 ÷ 40
9,3 ÷ 10,6
6500
229.3
1

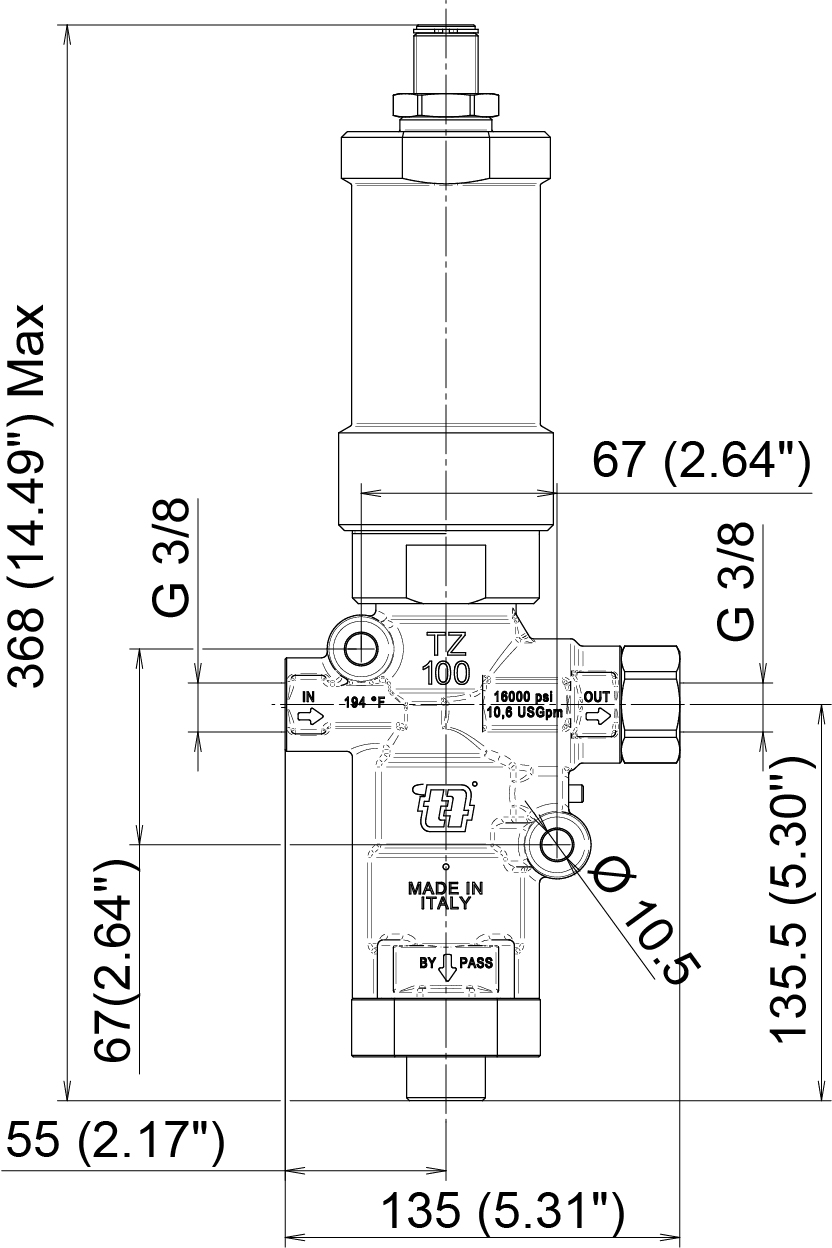

Schemas
