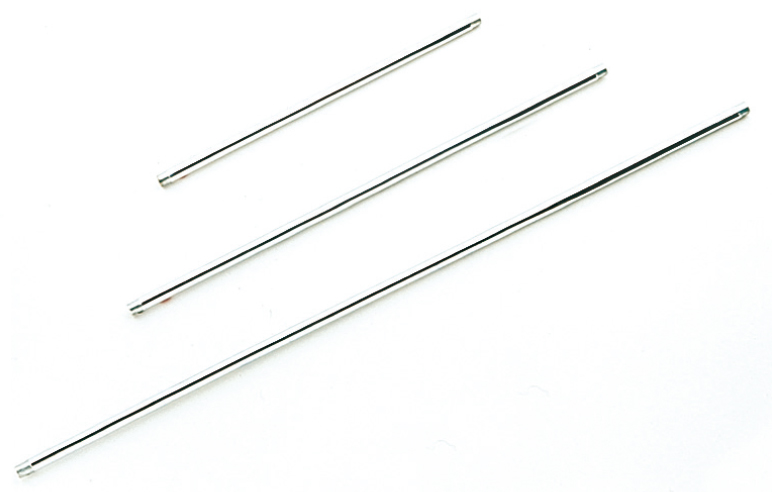

Stainless steel pipes
Straight
RATED PRESSURE
310 bar
31 MPa
4500 psi
PERMISSIBLE PRESSURE
350 bar
35 MPa
5075 psi
RATED FLOW
45 l/min
12 USGpm
RATED TEMPERATURE
160 °C
320 °F
PIPE DIAMETER
13 mm
1/4"
PIPE MATERIAL
Stainless Steel
Zoom
Features
P/N
Inlet
Outlet
Lenght mm
Lenght in
Weight
Pz
g
oz
4039900207
G 1/4 M
G 1/4 M
340
13.3
148
5.2
50
4039900208
G 1/4 M
G 1/4 M
500
19.6
222
7.8
50
4039900209
G 1/4 M
G 1/4 M
700
27.6
311
10.9
25
4039900210
G 1/4 M
G 1/4 M
900
35.4
383
13.5
25
4039900211
G 1/4 M
G 1/4 M
1200
47.2
510
18
10
4039900212
G 1/4 M
G 1/4 M
1500
59
640
22.5
10
4039900213
G 1/4 M
G 1/4 M
1700
66.9
725
25.6
10
4039900214
G 1/4 M
G 1/4 M
2000
78.7
850
30
10
