TPL

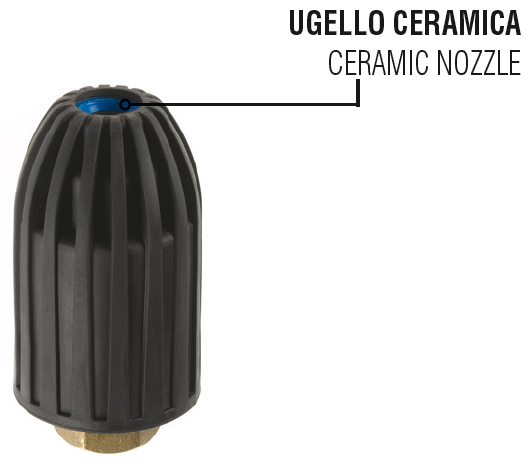

Featuring a compact and strong brass construction, this component combines durability, lightweight design and operator comfort. The anti-impact and anti-wear special ceramic nozzle and seat ensure long-lasting performance, while the controlled speed delivers high cleaning power. The rubber outer cover provides effective protection against accidental damage.
PERMISSIBLE PRESSURE
290 bar
29 MPa
4060 psi
RATED TEMPERATURE
90 °C
194 °F

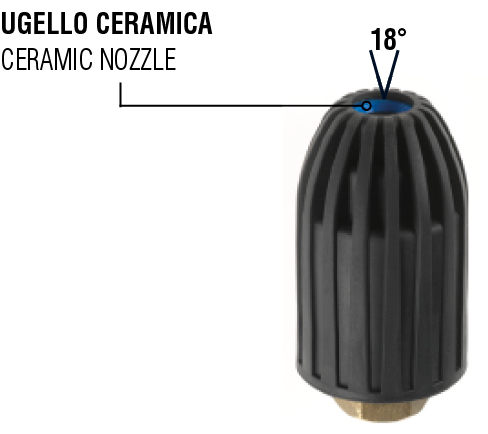

ANGLE 18°
Zoom
Features
P/N
Inlet
Size
New color
Diameter
Old color
Weight
Pz
Repair kit
Pz#1
mm
g
oz
0204009900
G 1/4 F
028
Lilac
1
Grey
180
6.35
5
4059900015
5
0204009910
G 1/4 F
033
Light Green
1.1
Red
180
6.35
5
4059900016
5
0204009920
G 1/4 F
04
Dark Green
1.2
Yellow
180
6.35
5
4059900017
5
0204009930
G 1/4 F
045
Dark Yellow
1.3
Green
180
6.35
5
4059900018
5
0204009940
G 1/4 F
053
Light Brown
1.4
Light Blue
180
6.35
5
4059900019
5

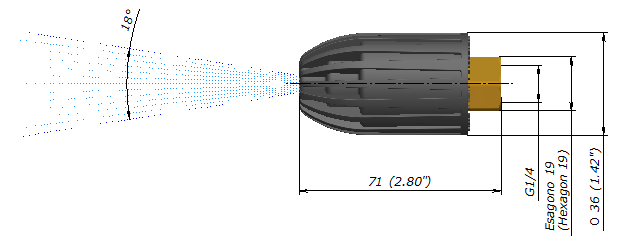

Schemas
