TK2
Heads without nozzles. To place an order, please complete the specific form.
MINIMUM OPERATING PRESSURE
10 bar
1 MPa
145 psi
PERMISSIBLE PRESSURE
250 bar
25 MPa
3630 psi
MINIMUM FLOW
20 l/min
5,3 USGpm
MAXIMUM FLOW
60 l/min
15,85 USGpm MAX
PERMISSIBLE TEMPERATURE
90 C°
194 °F
COMPLETE CYCLE
30 rotazioni
30 rotations
NOZZLES NUMBER
2x--3x-4x
NOZZLES TYPE
1/8 NPT
CLEANING
240° volumetric
MATERIAL
Inox AISI 316-Plastica PEEK
O-RING MATERIAL
EDPM
WATER INLET
G 1/2 F (NPT on demand)
WEIGHT
6,2 kg
219 oz
Zoom
New
Features
P/N
Flow rate l/min
Rated flow
Range di utilizzo
Pz
USGpm
4145022000
20
5,3
4,2–6,6
1
4145022001
30
7.9
6,9–9,2
1
4145022002
40
10.6
9,5–11,9
1
4145022003
50
13.2
12,2–14,5
1
4145022004
60
15.9
14,8–17,2
1

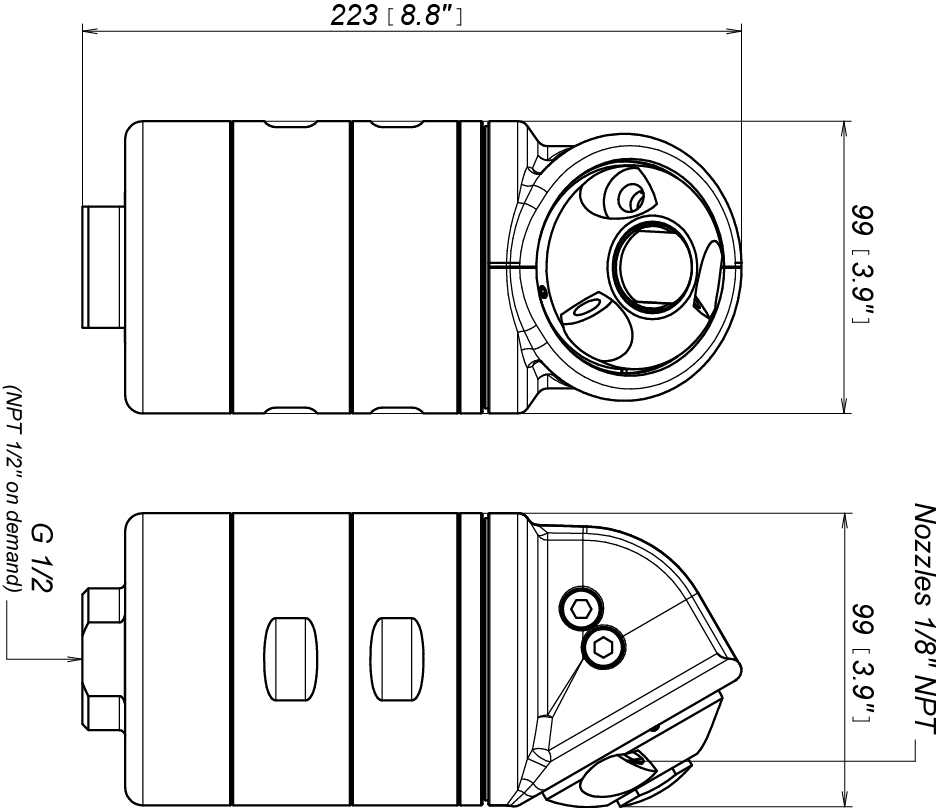

Schemas
