Spray Rate OS/MRS

Computer for distributing agricultural chemical products, recommended for multi-brand sprayers of herbicides, fertilizers, fungicides, insecticides and other products.

Versatile rate controller that displays the operating data of the implement and controls the flow rate, keeping the amount of product applied constant.

Rate controller computer for the application of crop protection products, herbicides, fertilizers and fungicides. Suitable for field sprayers, orchard sprayers and multi-row sprayers.

Control of up to 7 boom sections opening/closing via switches.

Can be combined with the StrongBox H control unit for the management of up to 9 hydraulic cylinders.

Features:

- Versions: up to 7 section valves.

- Automatic and manual operation.

- Dose adjustment: manual, automatic.

- Speed: Wheel Sensor, Radar (ISO11786), or GPS (NMEA0183).

- 4.3” colored LCD display, visible in all lighting conditions.

- Multilingual menu.

- Simplified work parameter entry.

- 8 customised nozzle parameter storage (in addition to ISO nozzles).

- Configurable units of measurement: Metric / US.

- Stores up to 20 tasks.

- Visual and acoustic alarms.

- Integrated diagnostic tool.

- Two auxiliary 12 V / 3.5 A outputs.

- Two inputs for ultrasound sensors.

- Inputs for Pressure Sensor and Tank Level.

- Managed parameters: pressure, speed, flow rate, treated area, distributed quantity, treatment duration, distance traveled, tank level.

- Exports task data via USB port or Cloud Connection.

Feature of the product Spray Rate OS/MRS
Feature of the product Spray Rate OS/MRS
Feature of the product Spray Rate OS/MRS
Feature of the product Spray Rate OS/MRS
Photo of the product Spray Rate OS/MRS
Zoom
Photo preview of the product Spray Rate OS/MRS
Feature of the product Spray Rate OS/MRS
CE
Feature of the product Spray Rate OS/MRS
Per attomizzatori
Features
P/N
Description
Section valves (W)
Pack
5001011400002
5001011400003
5001011400005
Spray Rate 4W OS
4
1
5001011400006
5001011400008
5001011400009
Highlights
Highlights of the product Spray Rate OS/MRS
Highlights of the product Spray Rate OS/MRS
Standard Set
Standard set of the product Spray Rate OS/MRS

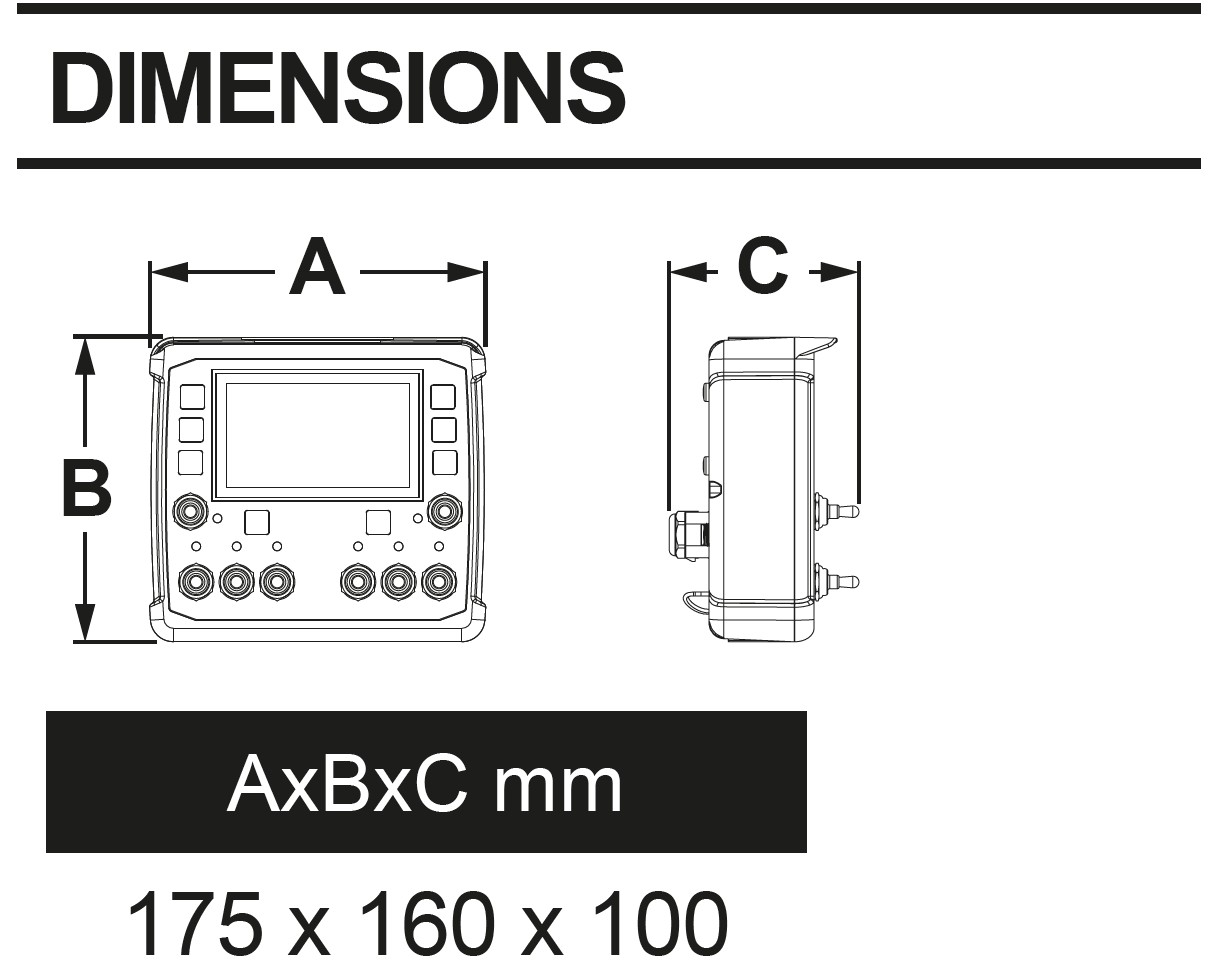

Schemas
Schemes of the product Spray Rate OS/MRS
Schemes of the product Spray Rate OS/MRS
Schemes of the product Spray Rate OS/MRS

Accessories

Optional accessories
Optional accessory for the product Spray Rate OS/MRS
Pressure sensor
P/N 8403003
P/N 8402003
Optional accessory for the product Spray Rate OS/MRS
CLOUD CONNECT, SPEEDOMETER & GPS SIGNAL
P/N 8398001
Optional accessory for the product Spray Rate OS/MRS
P/N C00902135
Optional accessory for the product Spray Rate OS/MRS
Pressure sensor
P/N 8403004
Optional accessory for the product Spray Rate OS/MRS

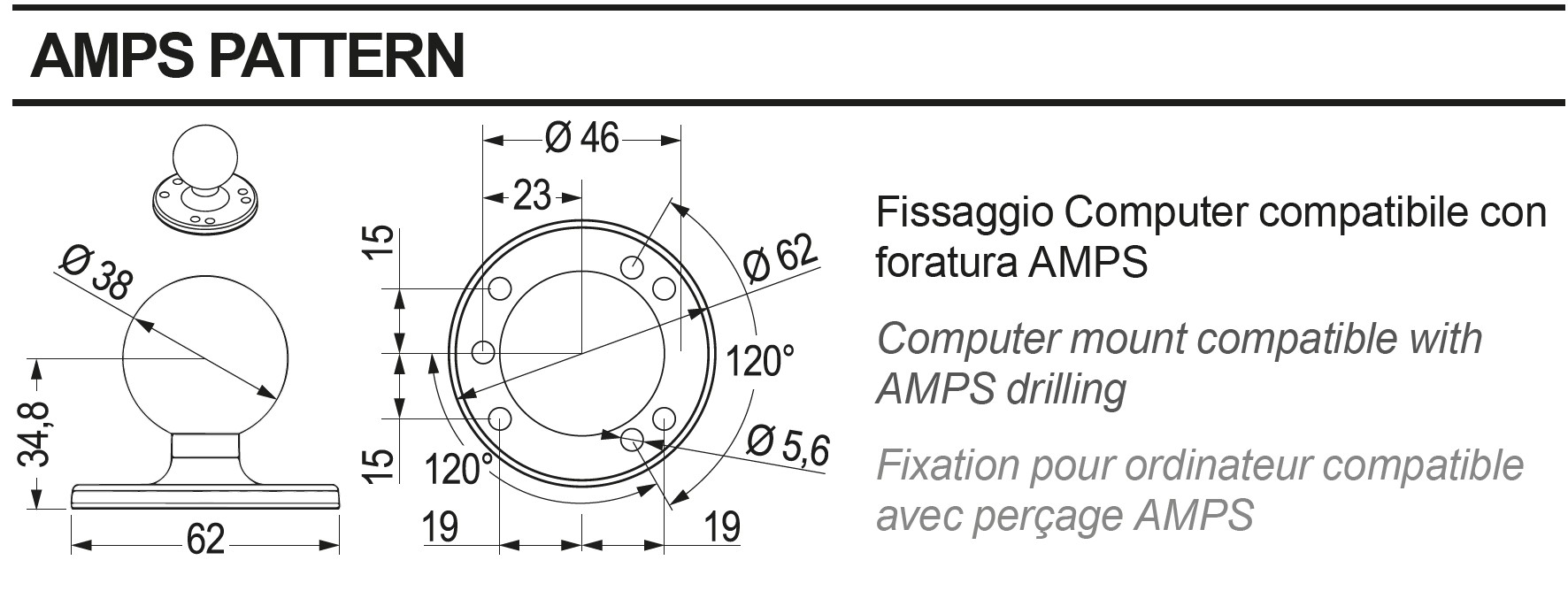

Suction cup bracket with ball + Monitor holder with ball
P/N 5001011000812
Optional accessory for the product Spray Rate OS/MRS
SPEEDOMETER & GPS SIGNAL
P/N 8398000
Optional accessory for the product Spray Rate OS/MRS
Pressure sensor
P/N 8403003
L m: 0,1
Attacco: SSEAL
Filettatura: 1/4” BSP
Pressione d'esercizio bar: 20
mA: 4-20
Tensione di alimentazione: 12Vdc
Pack: 1
P/N 8402003
Descrizione: Level sensor
Optional accessory for the product Spray Rate OS/MRS
CLOUD CONNECT, SPEEDOMETER & GPS SIGNAL
P/N 8398001
Optional accessory for the product Spray Rate OS/MRS
P/N C00902135
Description: Flowmeter adapter cable JST JWPS-SUPER SEAL M
L m: 0.5
Pack: 1
Optional accessory for the product Spray Rate OS/MRS
Pressure sensor
P/N 8403004
L m: 0,1
Attacco: SSEAL
Filettatura: 1/4” BSP
Pressione d'esercizio bar: 50
mA: 4-20
Tensione di alimentazione: 12Vdc
Pack: 1
Optional accessory for the product Spray Rate OS/MRS
Suction cup bracket with ball + Monitor holder with ball
P/N 5001011000812
Optional accessory for the product Spray Rate OS/MRS
SPEEDOMETER & GPS SIGNAL
P/N 8398000
Tensione di alimentazione: 12Vdc
Pack: 1

Installation

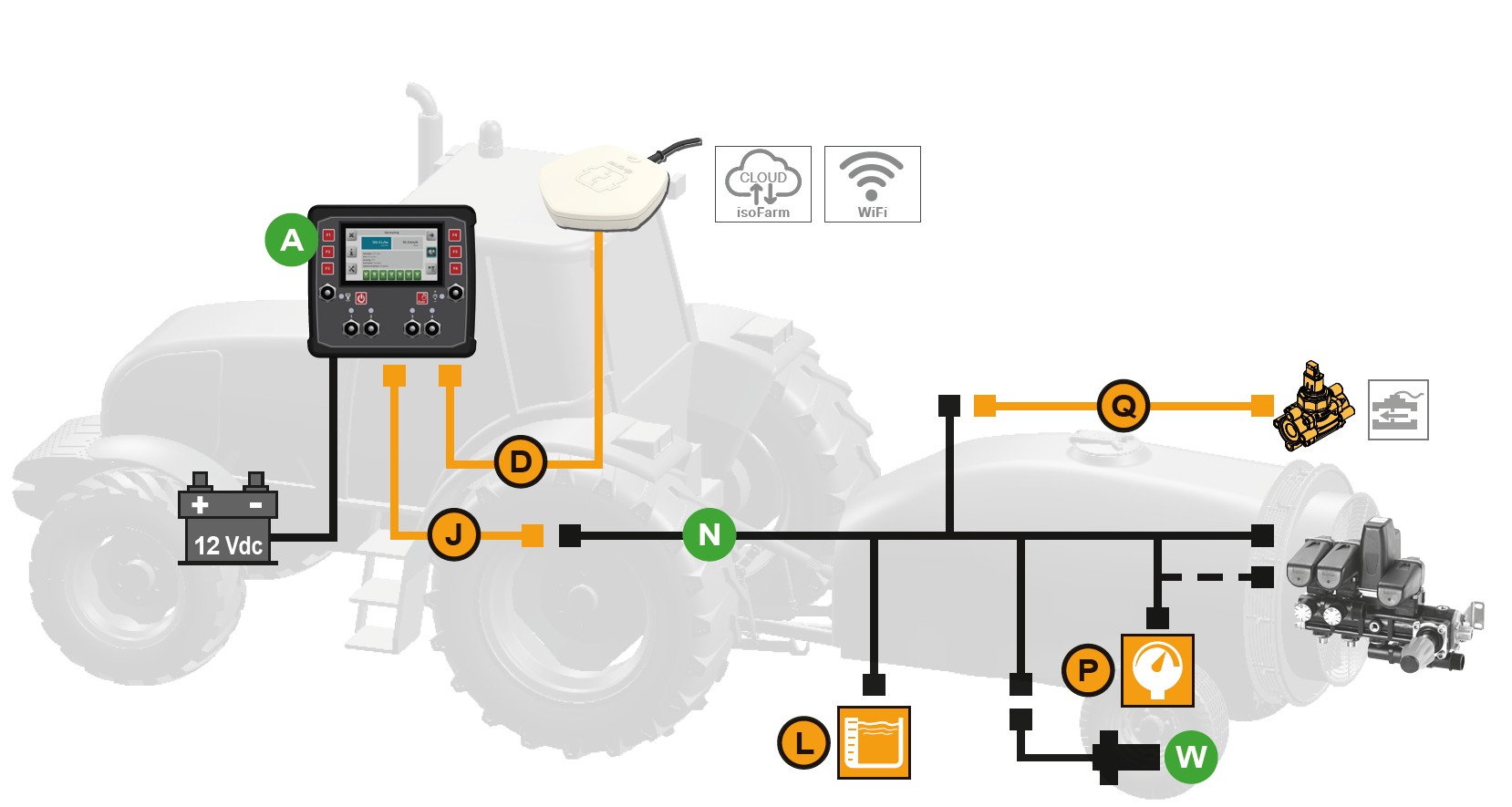

Installation of the product Spray Rate OS/MRS
1
2
3
4
5
6
7
8
INCLUDED
P/N
Description
Features
A
Monitor
N
Cavo collegamento valvole + sensore
L = 5 m
L
Staffa di fissaggio
O
Antenna Speedometer
OPTIONAL
P/N
Description
Features
J
400103010062
Prolunga 3 fili per flussometro
L = 3,0 m
P
Sensore di pressione
Q
Sensore di livello
R
5001011000812
Supporto a sfera per fissaggio monitor
