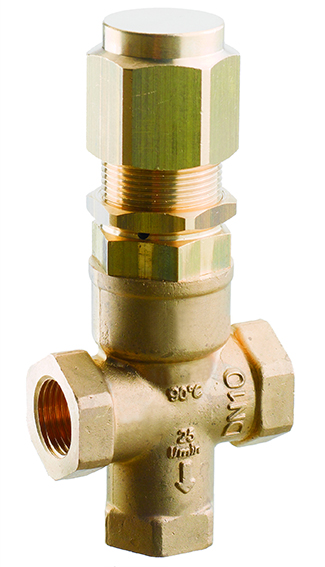

SVT40
This valve is designed to provide maximum system protection through effective damping of pressure spikes and total flow discharge. The spring working in a waterproof room, the long life of the dynamic seal and the safety end stroke ensure reliability, continuous operation and consistent long-term performance.
RATED PRESSURE
360 bar
36 MPa
5220 psi
PERMISSIBLE PRESSURE
400 bar
40 MPa
5800 psi
MINIMUM ADJUSTABLE PRESSURE
36 bar
3.6 MPa
522 psi
RATED FLOW
25 l/min
6.6 USGpm
RATED TEMPERATURE
90 °C
194 °F
Zoom
Features
P/N
Inlet
Outlet
Weight
Pz
Repair kit
Pz#1
g
oz
0215010420
G 3/8 F
G 3/8 F
495
17.46
5
4079900133
5
0215010430
2x 3/8 NPT F
3/8 NPT F
488
17.21
5
4079900034
5
