SVL28
Designed to provide maximum system protection, this valve ensures effective damping of pressure spikes and total flow discharge. The spring working in a waterproof room, the long life of the dynamic seal, and the safety end stroke enhance reliability, operational continuity and long-term durability.
RATED PRESSURE
250 bar
25 MPa
3625 psi
PERMISSIBLE PRESSURE
280 bar
28 MPa
4060 psi
MINIMUM ADJUSTABLE PRESSURE
25 bar
2.5 MPa
362 psi
RATED FLOW
25 l/min
6.6 USGpm
RATED TEMPERATURE
90 °C
194 °F
Zoom
Features
P/N
Inlet
Outlet
Weight
Pz
Repair kit
Pz#1
g
oz
0215010220
1x 3/8 NPT F
3/8 NPT F
357
12.5
5
4079900012
5
0215010230
1x G 3/8 F
G 3/8 F
358
12.5
5
4079900012
5

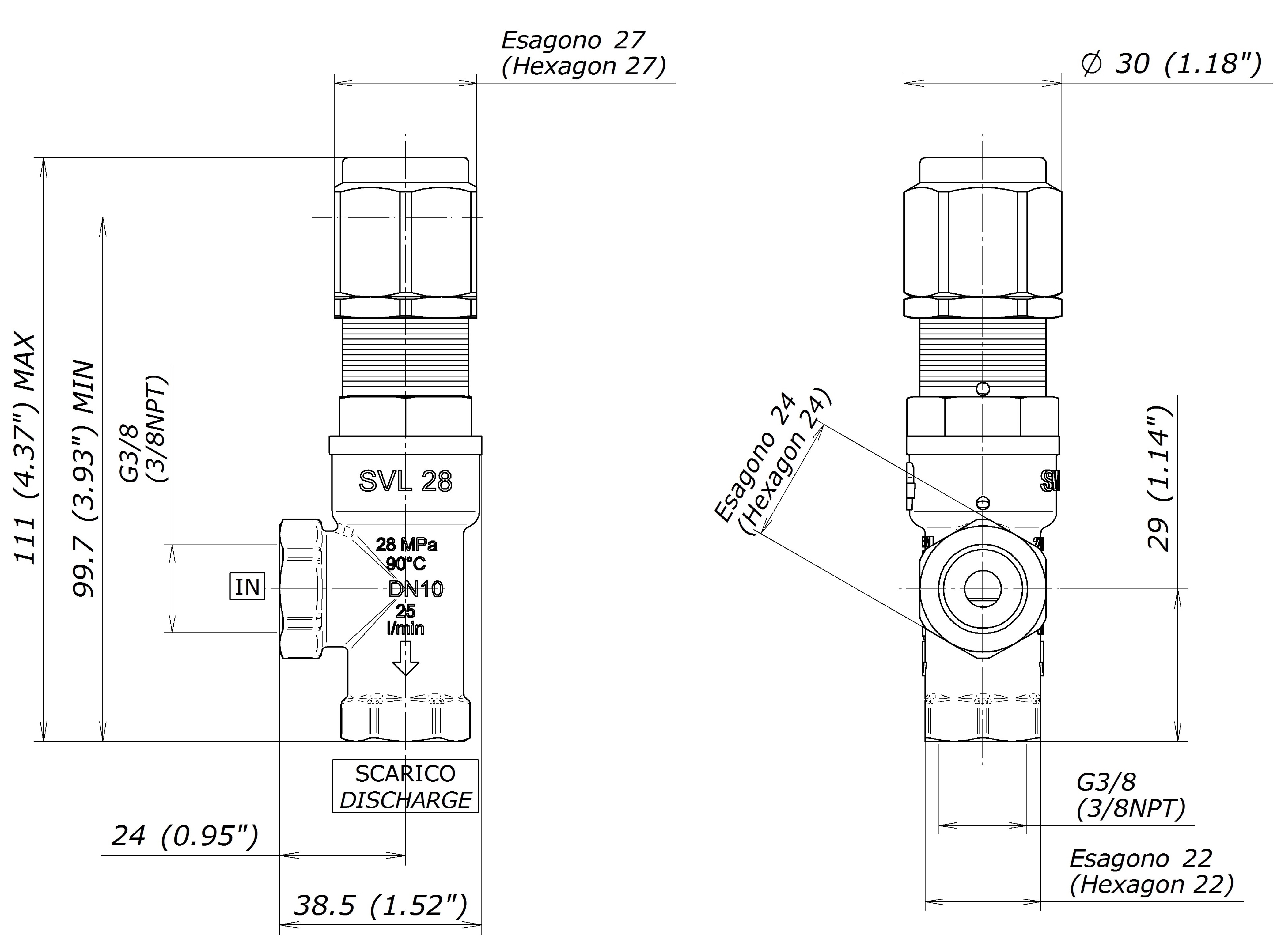

Schemas
