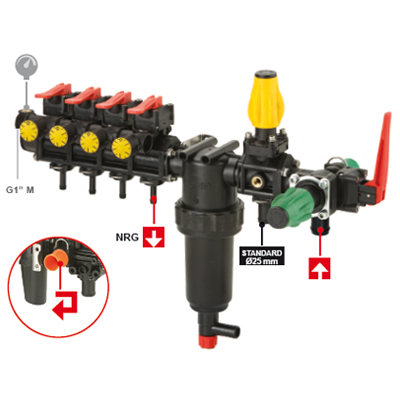

ST/BASIC 206
Manual control unit with metered modular valves, main ON/OFF valve, diaphragm pressure relief adjustable valve, volumetric control valve and anti-drip back suction device. Suitable for an accurate distribution of chemicals proportionally to the engine r.p.m.(RPM) with same gear.
When ordering specify diameter of inlet, outlet and by-pass hose-tails you need.
See "Compulsory Accessories".
Zoom
For crop sprayers
For low-volume spraying machines
Features
P/N
Valves
Pump flow rate l/min
Temperature °C
Pack
8376107
2
180
60
1
8376072
3
180
60
1
8376073
4
180
60
1
8376074
5
180
60
1
8376075
6
180
60
1
8376141
7
180
60
1
