START 06

Manual control unit with modular valves, main ON/OFF valve, diaphragm pressure relief adjustable valve and anti-drip back suction device. Available with or without filter.

When ordering specify diameter of inlet, outlet and by-pass hose-tails you need.

See "Compulsory Accessories".


For complete control unit click here.

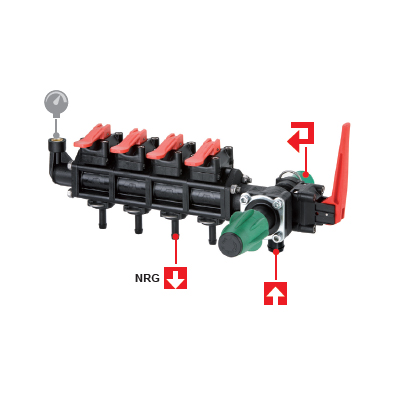

Photo of the product START 06
Zoom
Photo preview of the product START 06
Feature of the product START 06
For crop sprayers
Feature of the product START 06
For low-volume spraying machines
Features
Features
P/N
Valves
Pump flow rate l/min
Operating pressure bar
Temperature °C
Pack
8374033
2
180
20
60
1
8374034
3
180
20
60
1
8374035
4
180
20
60
1
8374036
5
180
20
60
1
8374037
6
180
20
60
1
8374054
7
180
20
60
1
