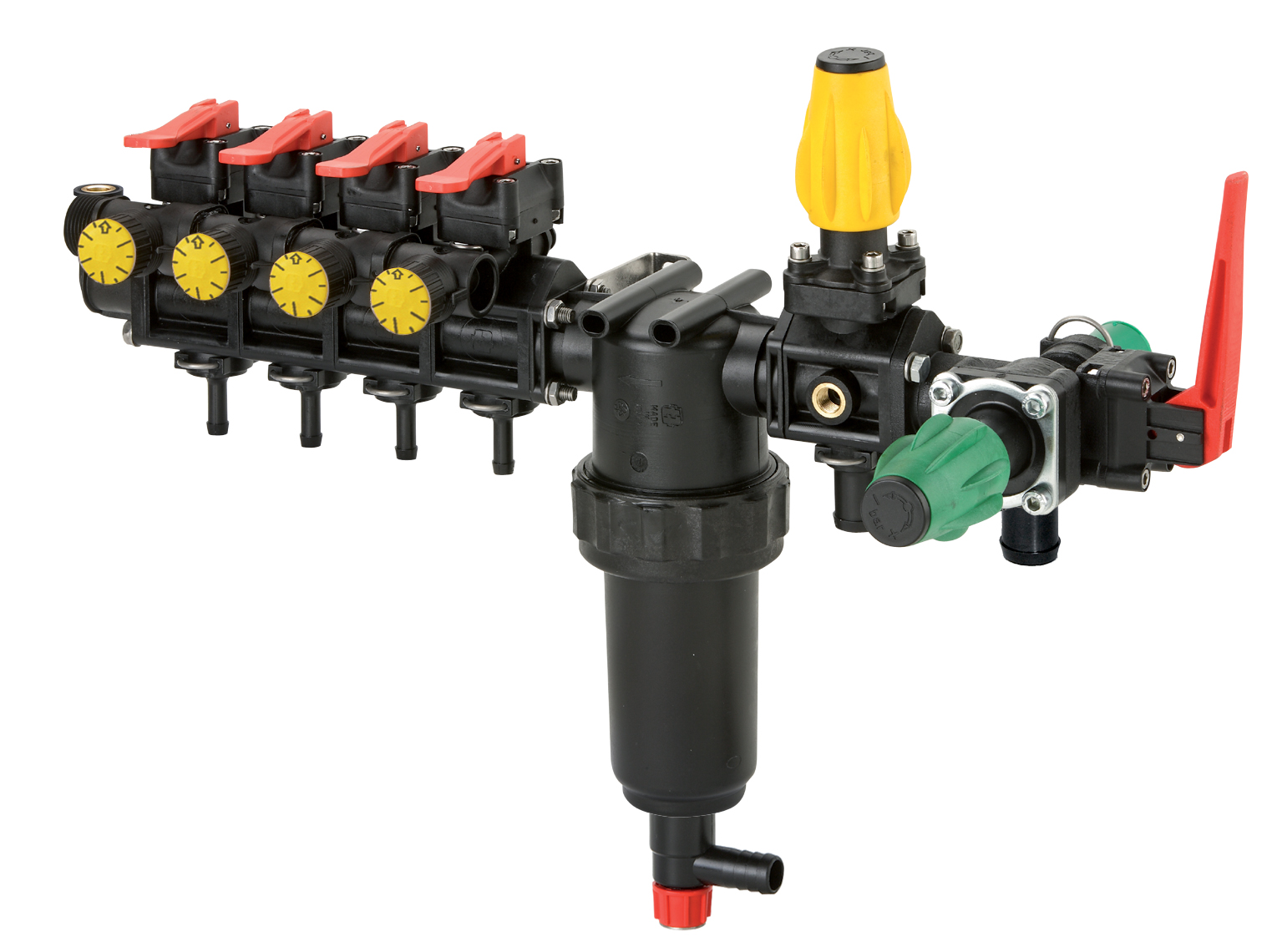

ST/BASIC 206 - Complete
Complete control unit
Manual control unit with metered modular valves, main ON/OFF valve, diaphgram pressure relief adjustable valve, volumetric control valve and anti-drip back suction devide. Suitable for an accurate distribution of chemicals proportionally to the engine r.p.m. (RPM) with same gear.
Provided with inlet, outlet and bypass fittings.
Zoom
Features
P/N
Valves
IN Ø mm
OUT Ø mm
By-pass Ø mm
By-pass flow rate l/min
8519010
5
25
13
35
120
8519012
5
25
10
25
2520
8519016
3
25
13
25
250
8519023
3
25
19
35
120
8519022
4
25
10
25
250
8519004
6
25
10
35
120
