SPEEDOMETER & GPS SIGNAL
SENSORS AND CABLES

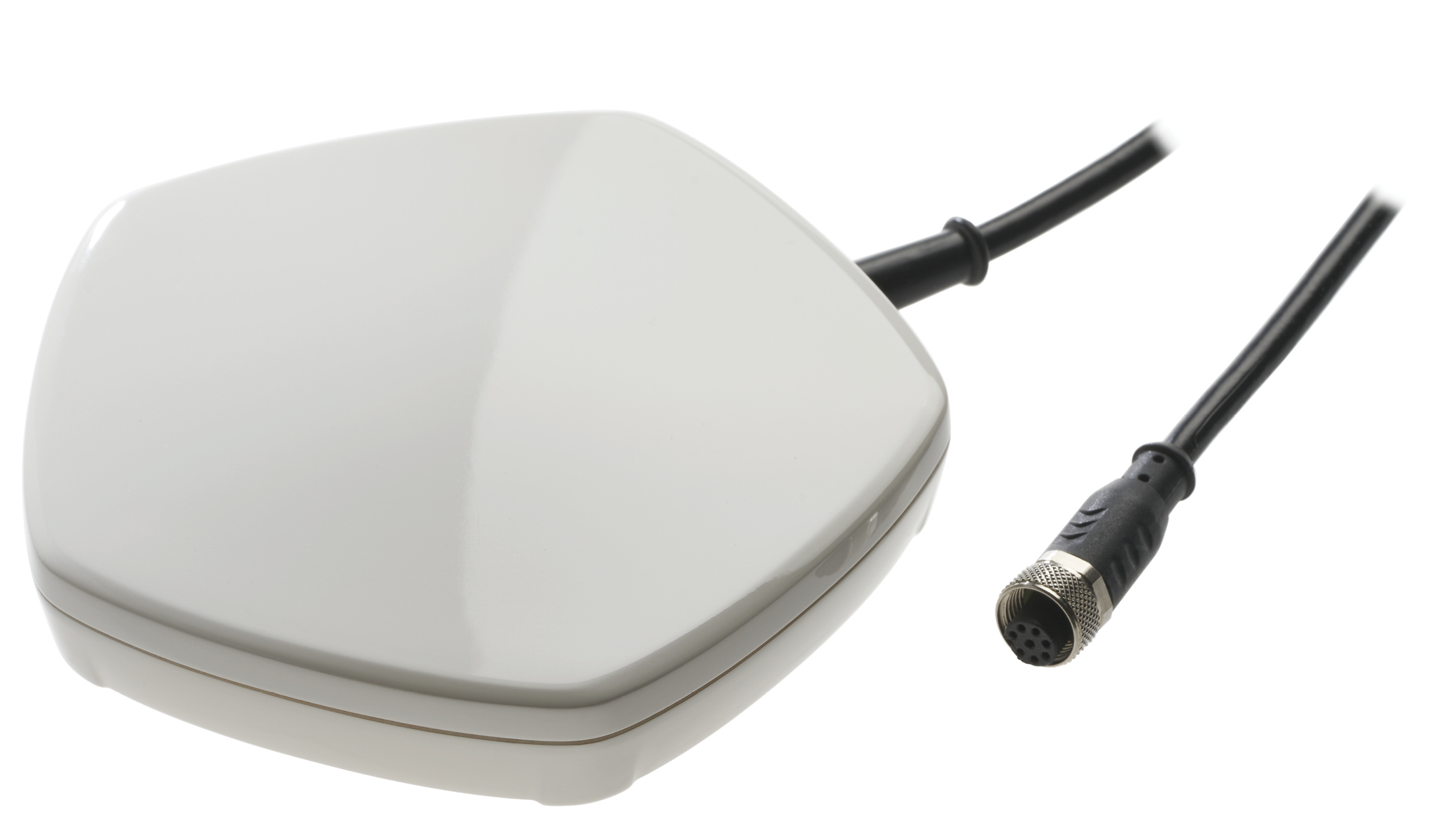

GPS Smart Antenna & Speedometer
The sensor provides the GPS position and speed of the vehicle on dedicated channels.
It uses a frequency signal to transmit the vehicle speed. This antenna can be used in place of the proximity sensors normally used on sprayer wheels.
- GPS signals from the following satellite constellations: GPS, GLONASS, BeiDou, Galileo and QZSS;
- Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN);
- Support 99-channel GNSS;
- Electronic accelerometer to improve starting measurement accuracy;
- Up to 10Hz update rate;
- Ultra low power consuption;
- Operating indicator LED;
- Built-in magnets for a quick installation;
- Waterproof;
- Available with M12 connector for Geosystem 260, Geosystem 250, Geosystem 240, Geosystem 190 computers;
- Power supply voltage 12 Volts
- Protocol NMEA 0183
- Output 1 GPS Position: RS232
- Output 2 Speed: square wave - open collector 1cm / pulse
- Output 3 Speed: square wave - open collector 25 cm/pulse
Suitable for:
- GS 260
- GS 240
- GS 190
Zoom
Features
P/N
Power supply Vdc
Pack
8398000
12
1

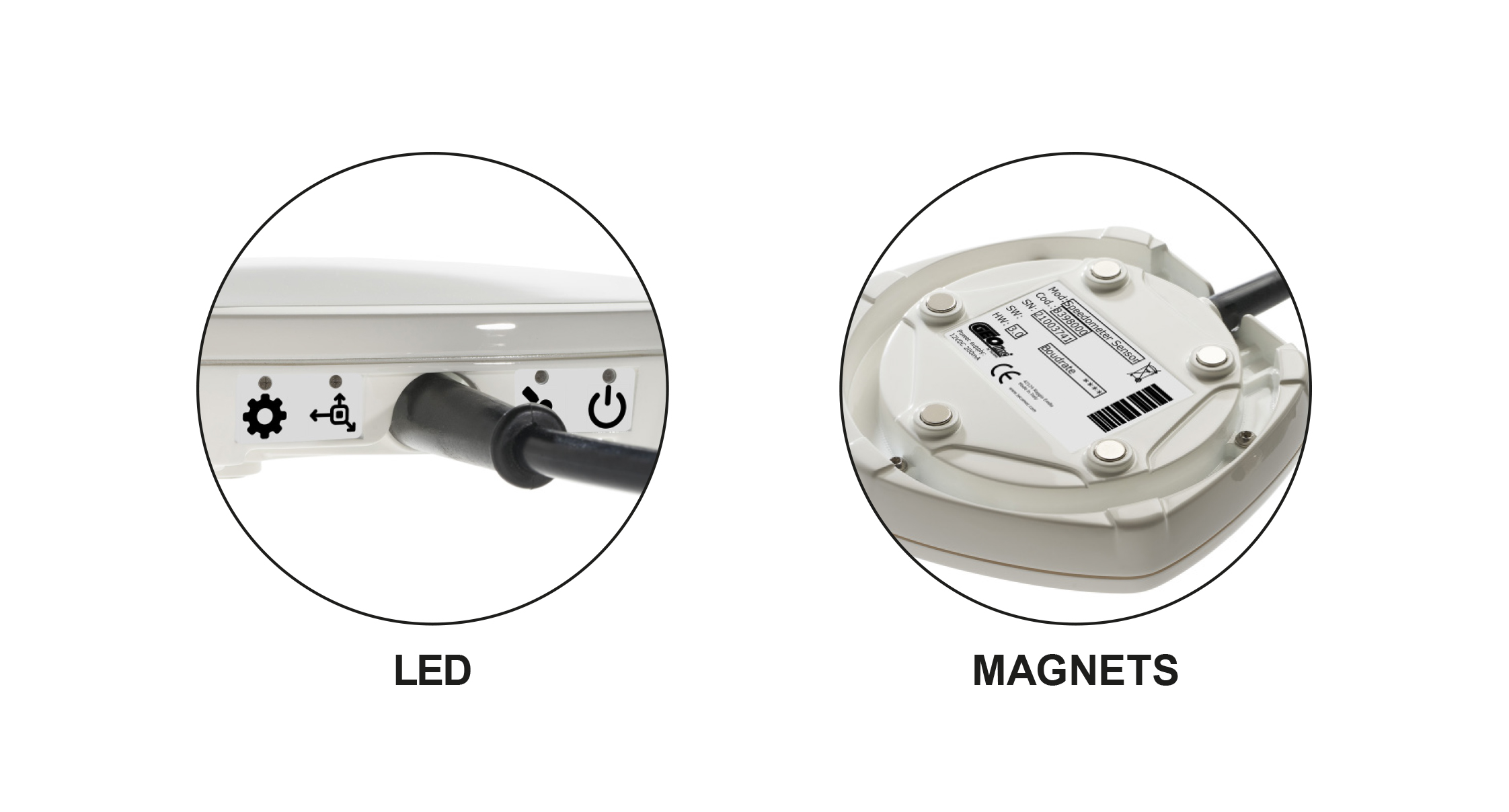

Highlights
Optional accessories
P/N
C00900091
Description:
Square Wave 1cm/puls
L m:
0,3
Tensione di alimentazione:
12Vdc
Cavo A mm:
M12
Cavo B mm:
Super Seal 3p
Pack:
1
P/N
C00900092
Description:
Square Wave 1cm/puls
L m:
0,3
Tensione di alimentazione:
12Vdc
Cavo A mm:
M12
Cavo B mm:
JWPS JST 4p
Pack:
1
