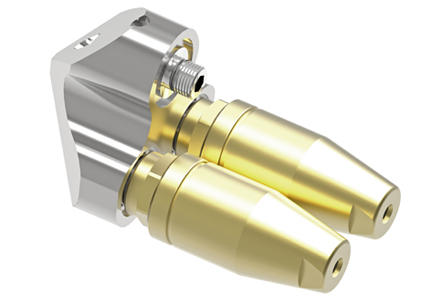

The supporting arrow device allows the rotating nozzle to advance inside the pipe, granting stability and improving its cleaning performance, as it can remove sedimented tar and limestone encrustations.

It’s made in high quality steel nickel-plated and is supplied with G 1/4″M stainless steel nipples and ceramic tip rotating nozzles.

APPLICATIONS

Removing sedimented tar, limestone, concrete;

Cutting roots, ice;

Pipes obstructed by stones, rocks;

Removal of sludge deposits;

Washing out sedimented grease and soap;

Permissible pressure: 4350 psi, Rated temperature 320 °F

Material: steel nickel-plated.

For nozzle specification refer to the Table A - see Download

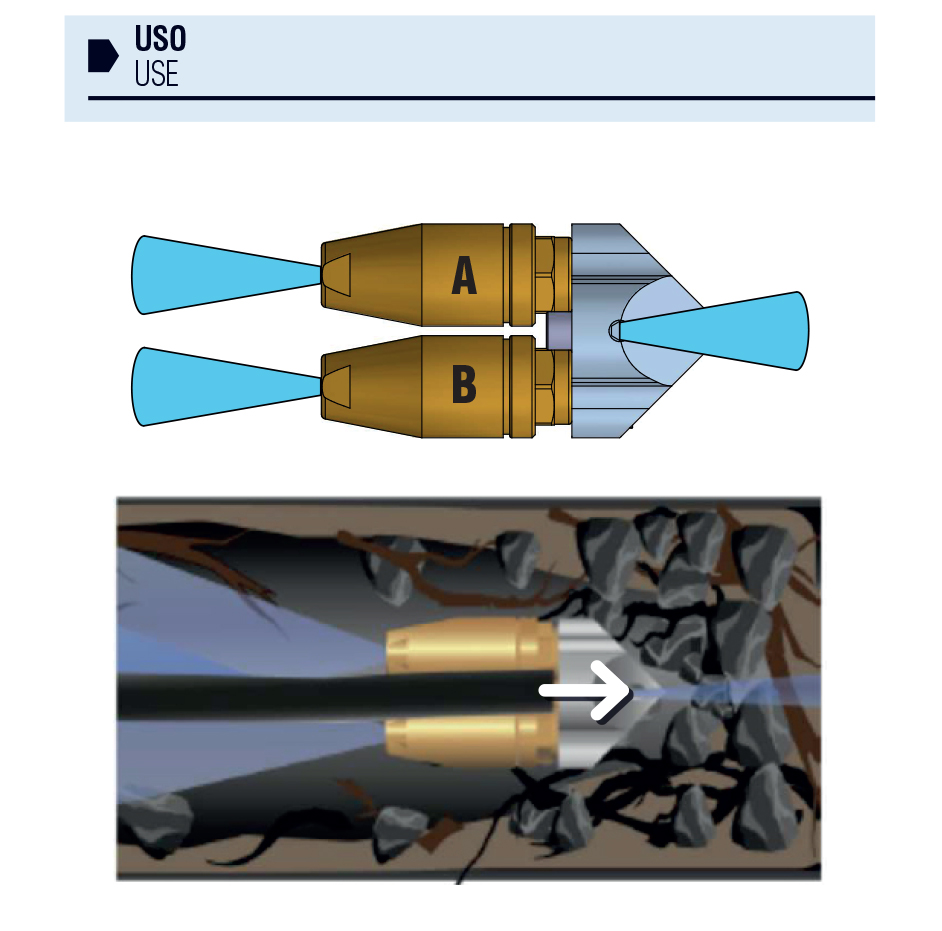

Reaction nozzles SNA3 are supplied complete with front and side nozzles.

In case that a higher advancement speed is required, front and side nozzles can be swapped with plugs supplied in the packaging.
