SF220+IDROJET 2


For nozzle specification refer to the Table D - see Download

RATED PRESSURE
207 bar
20.7 MPa
3000 psi
PERMISSIBLE PRESSURE
220 bar
22 MPa
3200 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
150 °C
302 °F
PIPE MATERIAL
Zinc plated Steel

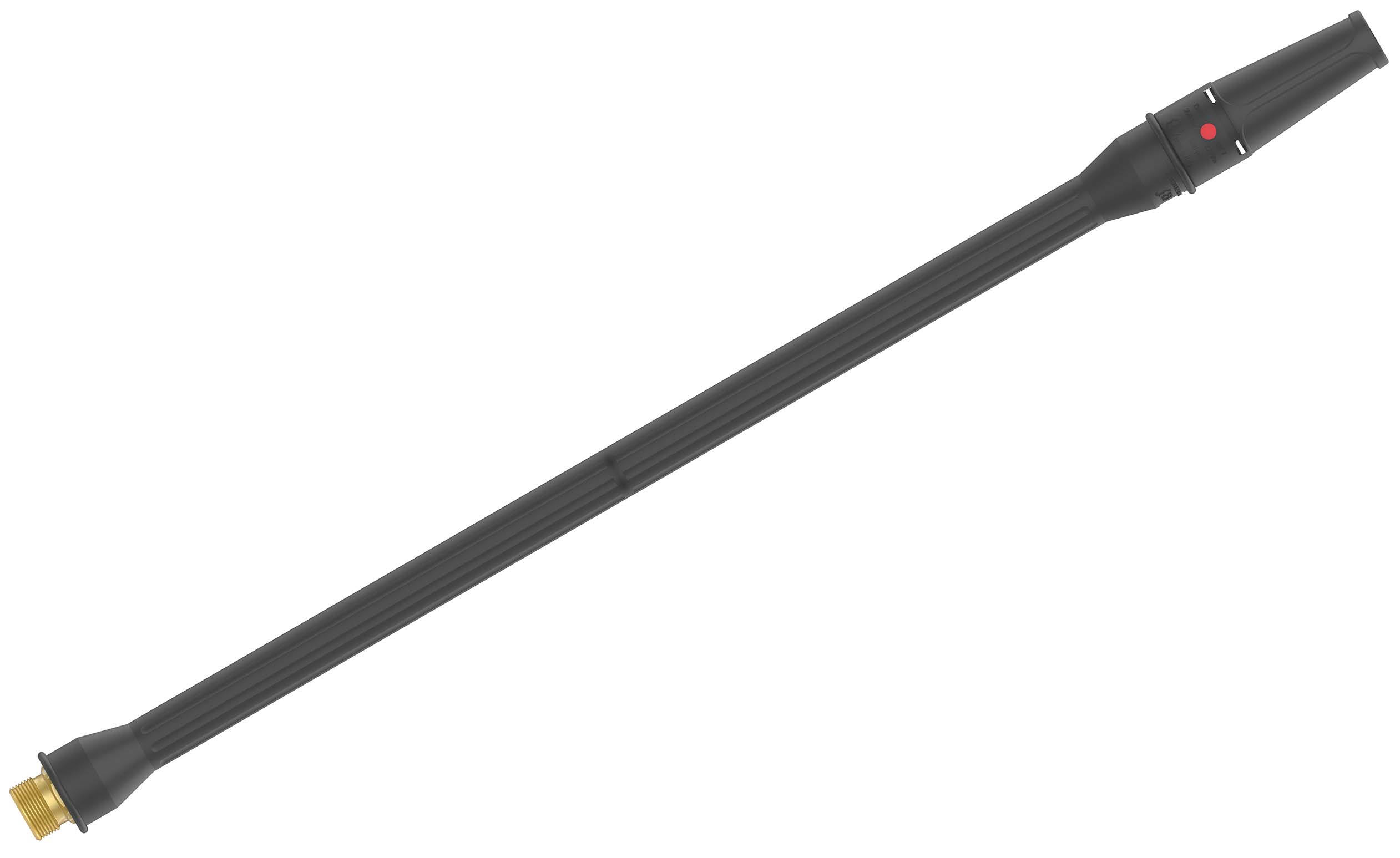

Photo of the product SF220+IDROJET 2
Zoom
Photo preview of the product SF220+IDROJET 2
Features
Downloads
Features
P/N
Inlet
Nozzle size
Color
Lenght mm
Lenght in
Weight
Pz
g oz
Tecomec new product
4041200019
M22x1,5 M
025
Pink
570
22.4
545 19.2
20
Tecomec new product
4041200020
M22x1,5 M
030
Yellow
570
22.4
545 19.2
20
Tecomec new product
4041200021
M22x1,5 M
035
White
570
22.4
545 19.2
20
Tecomec new product
4041200022
M22x1,5 M
037
Red
570
22.4
545 19.2
20
Tecomec new product
4041200023
M22x1,5 M
040
Blue
570
22.4
545 19.2
20
Tecomec new product
4041200024
M22x1,5 M
042
Brown
570
22.4
545 19.2
20
Tecomec new product
4041200025
M22x1,5 M
045
Orange
570
22.4
545 19.2
20
Tecomec new product
4041200026
M22x1,5 M
050
Green
570
22.4
545 19.2
20
Tecomec new product
4041200027
M22x1,5 M
055
Light blue
570
22.4
545 19.2
20
Tecomec new product
4041200028
M22x1,5 M
058
Black
570
22.4
545 19.2
20
Tecomec new product
4041200029
M22x1,5
060
Grey
570
22.4
545 19.2
20
Downloads
Download file preview image SF220+IDROJET 2
Tabelle Mecline
 -
