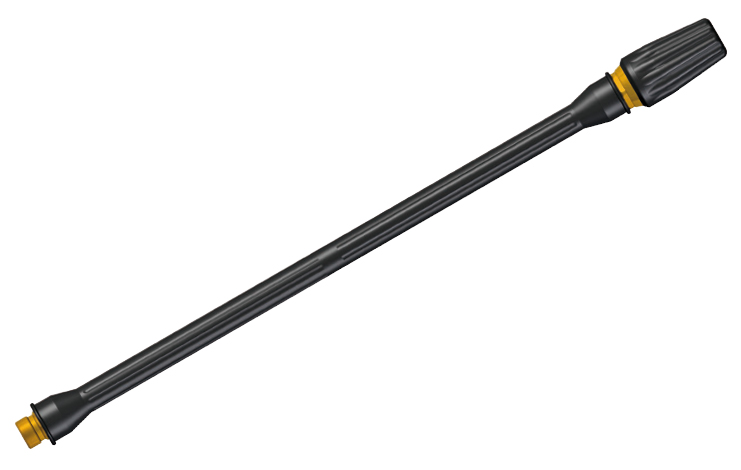

SF220 + ROTOJET 255
For nozzle specification refer to the Table A - see Download
RATED PRESSURE
230 bar
23 MPa
3300 psi
PERMISSIBLE PRESSURE
255 bar
25.5 MPa
3700 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
100 °C
212 °F
PIPE MATERIAL
Zinc Plated Steel
Zoom
Features
P/N
Inlet
Nozzle size
Lenght mm
Lenght in
Weight
Pz
g
oz
4042300001
M22x1,5 M
045
579
22.8
768
27.1
10
