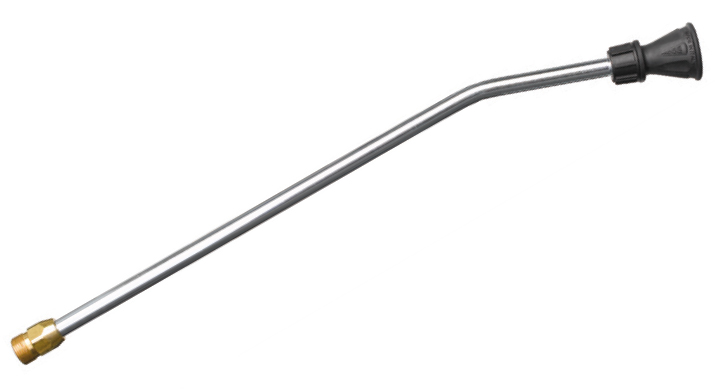

SCP+PU
For nozzle specification refer to the Table A - see Download
RATED PRESSURE
310 bar
31 MPa
4500 psi
PERMISSIBLE PRESSURE
350 bar
35 MPa
5075 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
150 °C
302 °F
PIPE MATERIAL
Zinc Plated Steel
Zoom
Features
P/N
Inlet
Outlet
Pipe length
Weight
Pz
mm
in
g
oz
432251
M22x1,5 M
1/4 NPT F
463
18.2
348
12.3
15
