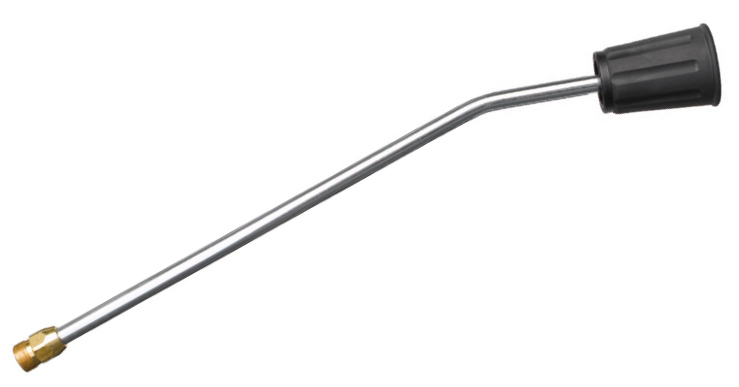

SCP+AN28
For nozzle specification refer to the Table A - see Download
RATED PRESSURE
250 bar
25 MPa
3625 psi
PERMISSIBLE PRESSURE
280 bar
28 MPa
4060 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
160 °C
320 °F
PIPE MATERIAL
Zinc Plated Steel
Zoom
Features
P/N
Inlet
Outlet
Pipe length
Weight
Pz
mm
in
g
oz
4030400001
M22x1,5 M
1/4 NPT F
463
18.2
476
16.8
20
472521
M22x1,5 M
1/4 NPT F
600
23.6
560
19.7
20
