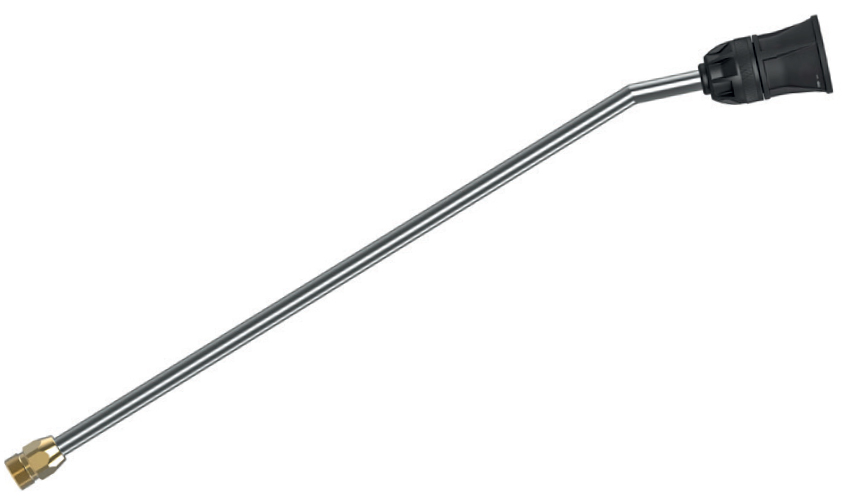

SCP+AN25
For nozzle specification refer to the Table A - see Download
RATED PRESSURE
250 bar
25 MPa
3625 psi
PERMISSIBLE PRESSURE
280 bar
28 MPa
4060 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
160 °C
320 °F
PIPE MATERIAL
Zinc Plated Steel
Zoom
Features
P/N
Inlet
Outlet
Lenght mm
Lenght in
Weight
Pz
g
oz
4043700008
M22x1,5 M
1/4 NPT F
500
19.7
510
18
20
4043700009
M22x1,5 M
1/4 NPT F
700
27.6
605
21.3
20
4043700010
M22x1,5 M
1/4 NPT F
900
35.4
645
22.8
20
4043700011
M22x1,5 M
1/8 NPT F
500
19.7
510
18
20
4043700012
M22x1,5 M
1/8 NPT F
700
27.6
605
21.3
20
4043700013
M22x1,5 M
1/8 NPT F
900
35.4
645
22.8
20
