RAPID FAN
FLOWMETERS
Flowmeter with turbine.
- Suitable for agricultural and industrial applications.
- Turbine made from corrosion-resistant material.
- Sapphire bearings.
- LED power light.
- Available with different flange types.
- High precision in working range (1%).
- Tool-free turbine assembly removal.
- Facilitated maintenance and cleaning.
- Glass-fibre reinforced polyamide body.
- Working pressure up to 50 bar*
- Pulse output (NPN square wave, 200 mA Max).
- Working voltage 10-16 volts.
- Calibrated during production.
- Special ranges on request.
Cable not included, compulsory: to be ordered separately.
Zoom
For crop sprayers
Per attomizzatori
CE
Straddle sprayer
Features
P/N
Flange
Flow rate l/min
% Error
Temperature °C
Power supply Vdc
Ø
Weight
Pack
A mm
B mm
C mm
mm
kg
8404055
NRG 1”
10-160
≤1
0 → +85
9 - 32
22
~0,6
1
135
120
76
8404056
AF5 M-F
10-160
≤1
0 → +85
9 - 32
22
~0,6
1
125
148
76
8404034
AF5 F-F
10-160
≤1
0 → +85
9 - 32
22
~0,6
1
125
152
76
8404049
M100
10-160
≤1
0 → +85
9 - 32
22
~0,6
1
125
115
76
8404050
M200
10-160
≤1
0 → +85
9 - 32
22
~0,6
1
137
115
78

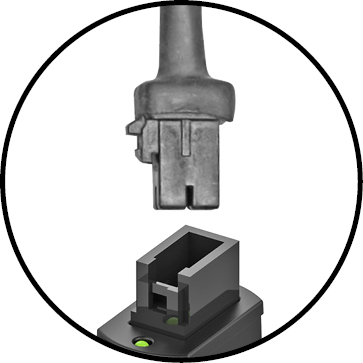

Highlights

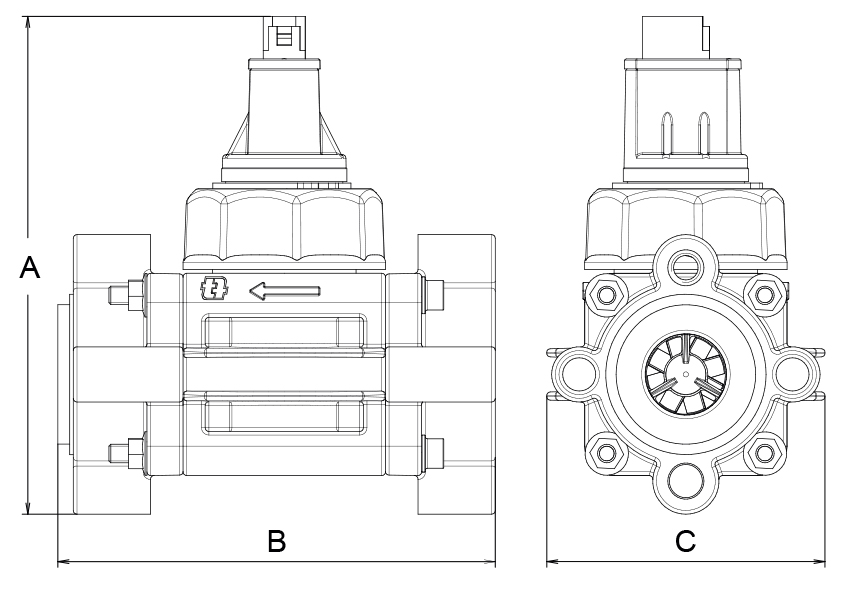

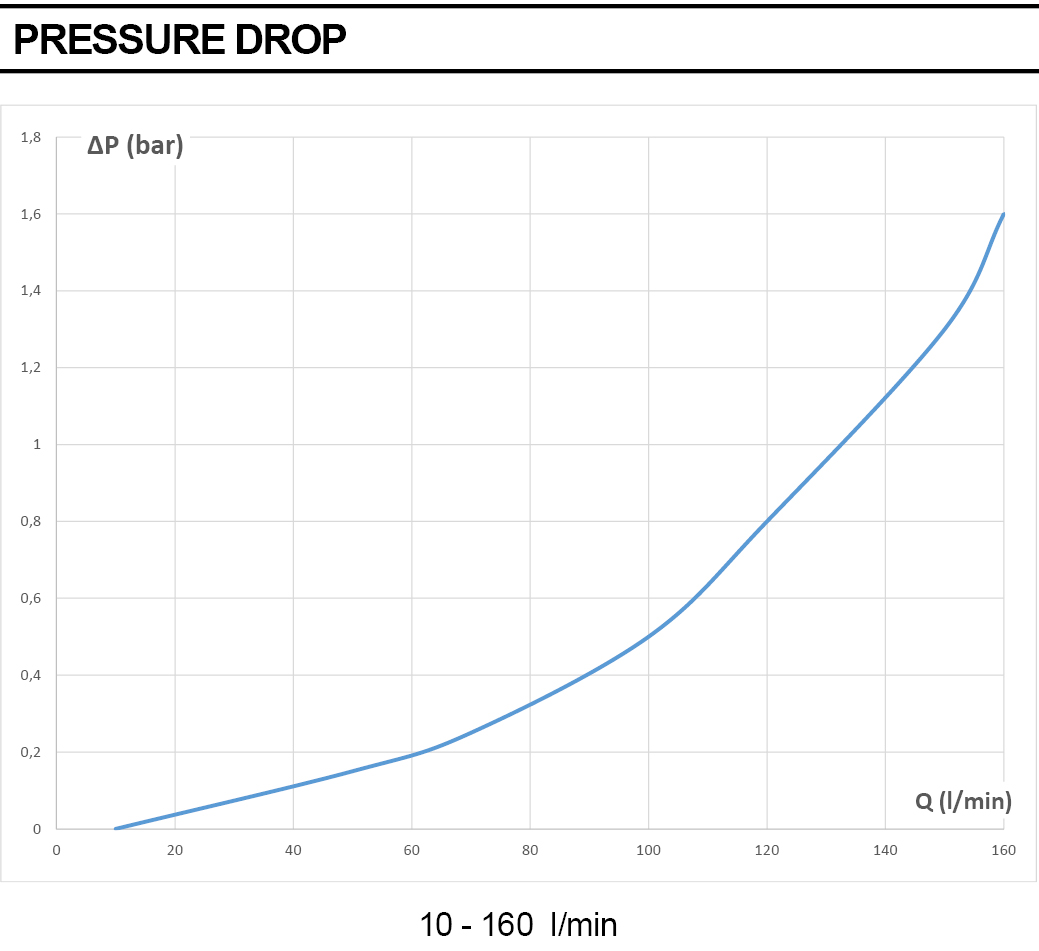

Schemas
Replacements
Model
P/N
K00111002
P/N
K00111003
P/N
K00111000
P/N
K00111001
Mandatory accessories
P/N
C00902055
P/N
C00902105
P/N
C00902135
P/N
C00902055
Description:
Flowmeter adapter cable JST JWPS - WIRES
L m:
2
Pack:
1
P/N
C00902105
Description:
Flowmeter connecting cable JST JWPS+JST JWPS
L m:
2
Pack:
1
P/N
C00902135
Description:
Flowmeter adapter cable JST JWPS-SUPER SEAL M
L m:
0.5
Pack:
1
P/N
K00111002
Description:
Flowmeter body - AF5 F-F flanges
Pack:
1
P/N
K00111003
Description:
Flowmeter body - M100 flanges
Pack:
1
P/N
K00111000
Description:
Flowmeter body - NRG flanges
Pack:
1
P/N
K00111001
Description:
Flowmeter body - AF5 M-F flanges
Pack:
1
