Nozzle holders with diaphragm check-valve

Nozzle holders with diaphragm check-valve in EPDM/ VITON® with stopcock, including o-ring gasket, fixing screw and nut. The check-valve with stopcock allows each individual nozzle holder to be closed by turning the red ring nut located on the check-valve. Quick fitting. Caps not included.

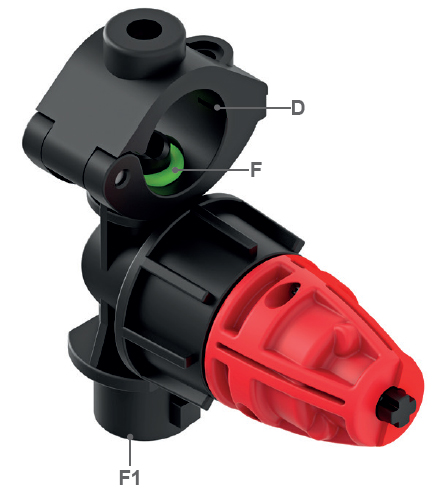

Photo of the product Nozzle holders with diaphragm check-valve
Zoom
Photo preview of the product Nozzle holders with diaphragm check-valve
Features
Features
P/N
Gasket material
F1
F mm
D
Operating pressure bar
Pack
8234081
EPDM
QUICK
7
20 mm
20
25
8234088
VITON®
QUICK
7
20 mm
20
25
8234082
EPDM
QUICK
10
20 mm
20
25
8234089
VITON®
QUICK
10
20 mm
20
25
8234083
EPDM
QUICK
7
1/2"
20
25
8234090
VITON®
QUICK
7
1/2"
20
25
8234084
EPDM
QUICK
10
1/2"
20
25
Tecomec new product
8234125
EPDM
QUICK
10
22 mm
20
25
8234091
VITON®
QUICK
10
1/2"
20
25
Tecomec new product
8234126
VITON®
QUICK
10
22 mm
20
25
8234085
EPDM
QUICK
10
25 mm
20
25
8234086
EPDM
QUICK
10
3/4"
20
25
8234092
VITON®
QUICK
10
3/4"
20
25
8234087
EPDM
QUICK
10
1"
20
25
8234093
VITON®
QUICK
10
1"
20
25
Photo of the product Nozzle holders with diaphragm check-valve

Accessories

Optional
Supplied related accessories
Model
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
P/N V00007005
P/N V00007000
