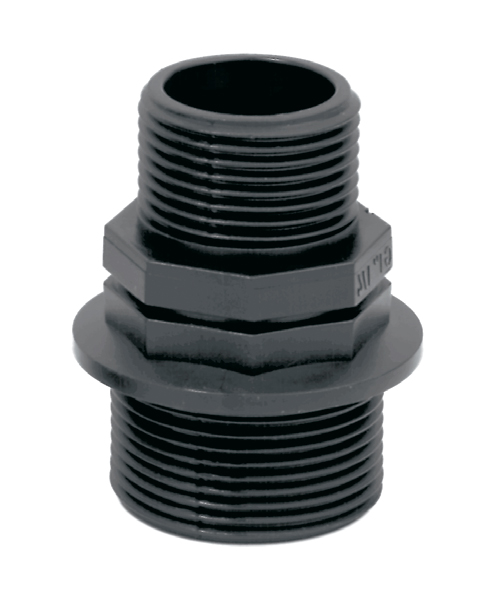

Reducing nipple
Zoom
GAS (BSP)
Features
P/N
F
B mm
H
D mm
F1 mm
H1 mm
D1 mm
L mm
Pack
mm
8058101
Replaced by: 8058103
G 3/8
24
11.5
10
G 1/2
15
14
38.5
25
8058151
G 1/2
40
20
14
G 3/4
22
18
58
25
8058152
G 1/2
44
20
14
G 1
22
25
60
25
8058201
G 3/4
44
22
18
G 1
22
25
62
25
8058251
G 1
53
22
25
G 1¼
24
32
66
25
8058301
G 1¼
60
24
32
G 1½
24
38
68
25
8058351
G 1½
76
24
38
G 2
27
47.5
71
10
8058401
Replaced by: 8058403
G 2
80
26
47.5
G 2½
31
63
75
10
8058402
Replaced by: 8058404
G 2
95
33
47.5
G 3
26
73.5
77
10
8058451
Replaced by: 8058452
G 2½
95
31
63
G 3
33
73.5
82
10

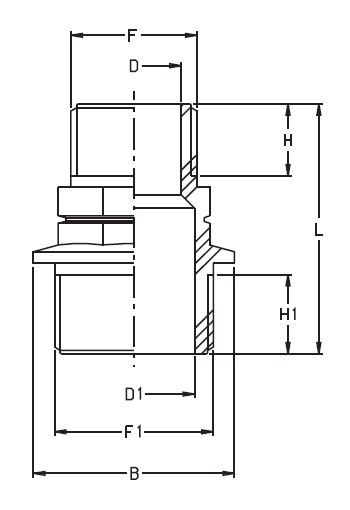

Schemas
Replacements
Model
O-Ring gaskets for fittings with fly nut
P/N
G00002004
O-Ring gaskets for fittings with fly nut
P/N
G00002005
O-Ring gaskets for fittings with fly nut
P/N
G00002011
O-Ring gaskets for fittings with fly nut
P/N
G00002004
Materiale guarnizione:
EPDM
F:
G 3/4
F maschio:
G 3/8
D mm:
24.5
D1 mm:
17
S mm:
2.5
Pack:
50
O-Ring gaskets for fittings with fly nut
P/N
G00002005
Materiale guarnizione:
EPDM
F:
G 3/4
F maschio:
G 3/8
D mm:
24.5
D1 mm:
17
S mm:
2.5
Pack:
50
O-Ring gaskets for fittings with fly nut
P/N
G00002011
Materiale guarnizione:
VITON
F femmina:
G 1¼
F maschio:
G 3/4
D mm:
39.5
D1 mm:
27.5
S mm:
2.5
Pack:
50
