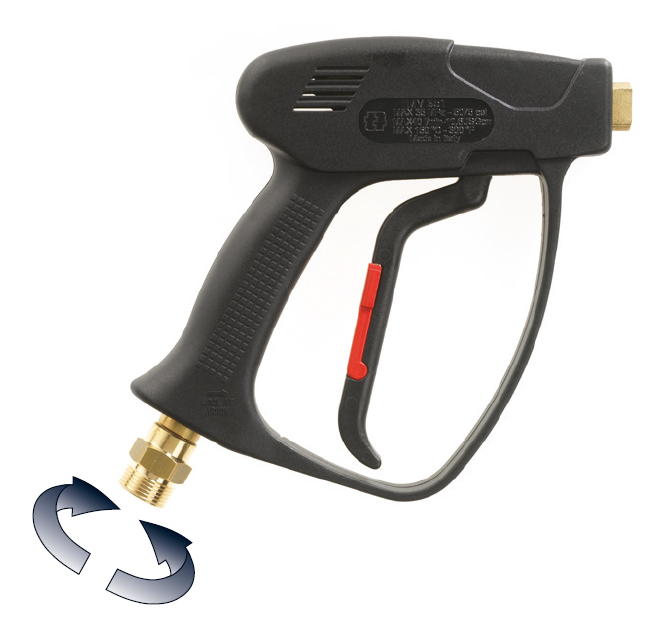

MV951 SWIVEL STD
RATED PRESSURE
310 bar
31 MPa
4500 psi
PERMISSIBLE PRESSURE
350 bar
35 MPa
5075 psi
RATED FLOW
40 l/min
10.6 USGpm
RATED TEMPERATURE
150 °C
302 °F
Zoom
Features
P/N
Inlet
Outlet
Weight
Pz
Repair kit
Pz#2
Swivel gasket repair kit
Pz#3
g
oz
4012206002
SW STD M22x1,5 M
G 1/4 F
575
20.3
20
0200103550
20
4019900020
20
4012206005
SW STD G 3/8 F
G 1/4 F
575
20.3
20
0200103550
20
4019900020
20
4012206006
SW STD NPT 3/8 F
G 1/4 F
575
20.3
20
0200103550
20
4019900020
20
4012206017
SW STD G 3/8 M
G 1/4 F
575
20.3
20
0200103550
20
4019900020
20
