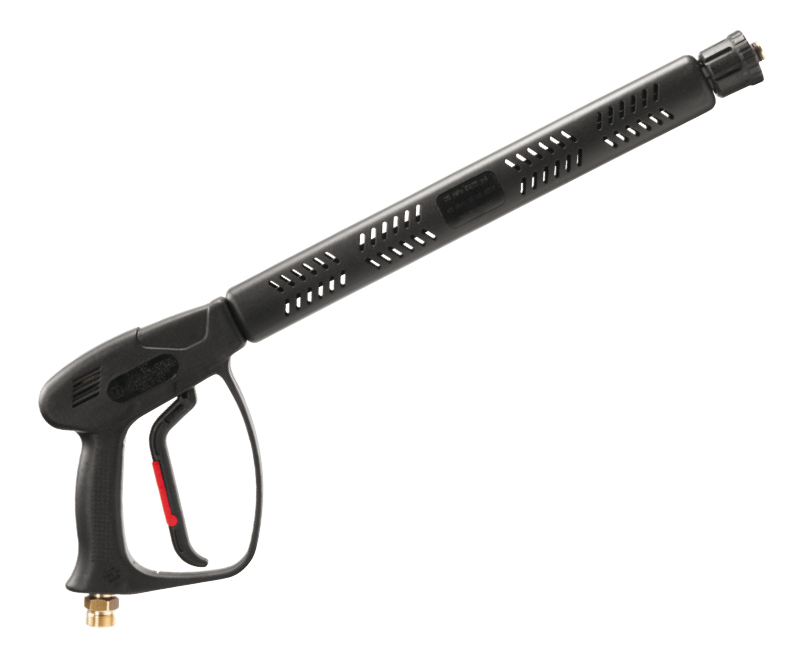

MV951+EXTEN. L35+ARF
RATED PRESSURE
310 bar
31 MPa
4500 psi
PERMISSIBLE PRESSURE
350 bar
35 MPa
5075 psi
RATED FLOW
40 l/min
10.6 USGpm
RATED TEMPERATURE
150 °C
302 °F
Zoom
Features
P/N
Inlet
Outlet
Weight
Pz
g
oz
4022106013
G 3/8 F
ARF M22x1,5 F Short
1040
36.7
15
4022106014
G 3/8 M
ARF M22x1,5 F Short
1060
37.4
15
4022206003
SW G3/8 F
ARF M22x1,5 F Long
1100
38.8
15
4022106010
M22x1,5 M
ARF M22x1,5 F Long
1115
39.3
15
