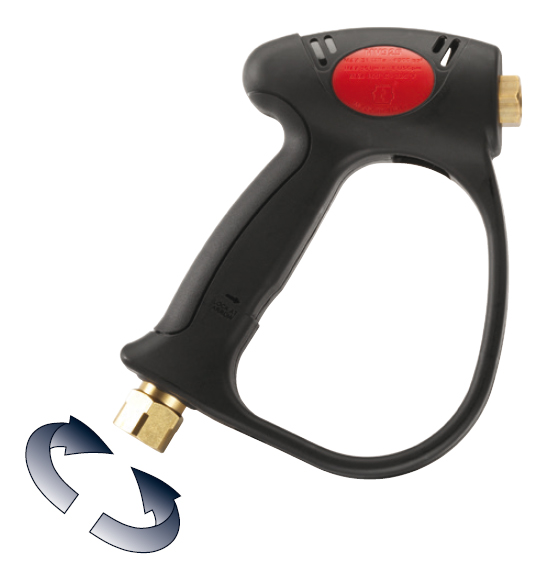

MV925 SWIVEL TOP
Stainless steel pipe
RATED PRESSURE
280 bar
28 MPa
4060 psi
PERMISSIBLE PRESSURE
310 bar
31 MPa
4500 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
160 °C
320 °F
Zoom
Features
P/N
Inlet
Outlet
Weight
Pz
Swivel top gasket repair kit
Pz#1
g
oz
4012905002
SW TOP G 3/8 F
G 1/4 F
410
14.5
20
4019900014
20
4012905003
SW TOP M22x1,5 M
G 1/4 F
410
14.5
20
4019900014
20
4012905004
SW TOP 3/8 NPT F
G 1/4 F
410
14.5
20
4019900014
20
4012905005
SW TOP G 3/8 M
G 1/4 F
450
15.9
20
4019900014
20
