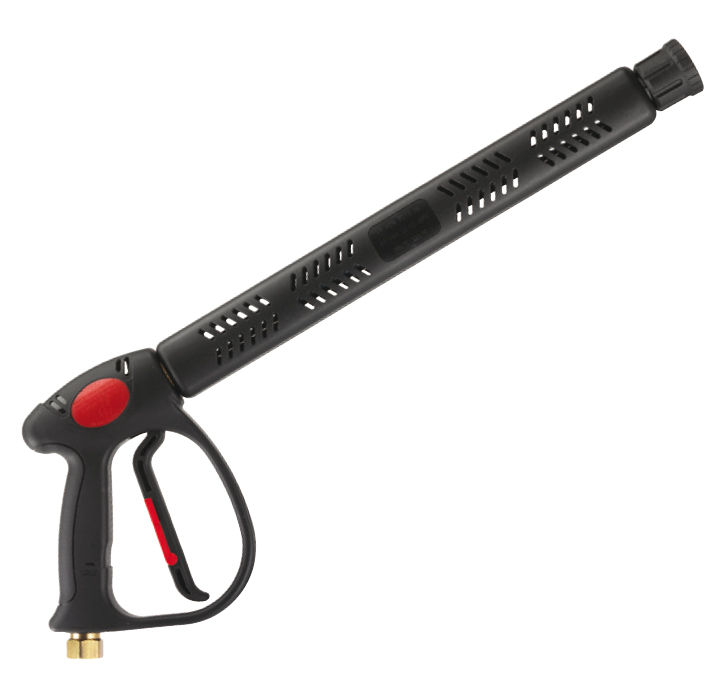

MV925 +EXTEN. L35+ARF SHORT
RATED PRESSURE
280 bar
28 MPa
4060 psi
PERMISSIBLE PRESSURE
310 bar
31 MPa
4500 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
160 °C
320 °F
Zoom
Features
P/N
Inlet
Outlet
Weight
Pz#1
g
oz
4022105000
G 3/8 F
ARF M22x1,5 F Short
877
30.94
15
4022105001
M22x1,5 M
ARF M22x1,5 F Short
877
30.94
15
4022105002
3/8 NPT F
ARF M22x1,5 F Short
877
30.94
15
4022105003
G 3/8 M
ARF M22x1,5 F Short
918
32.38
15
4022105004
G 1/4 M
ARF M22x1,5 F Short
918
32.38
15
4022205000
SW STD G 3/8 F
ARF M22x1,5 F Short
909
32.06
15
4022205003
SW STD G 3/8 M
ARF M22x1,5 F Short
950
33.51
15
4022205005
SW TOP G 3/8 F
ARF M22x1,5 F Short
947
33.4
15
4022205006
SW TOP M22x1,5 M
ARF M22x1,5 F Short
947
33.4
15
4022205008
SW TOP G 3/8 M
ARF M22x1,5 F Short
988
34.85
15
