MV420-MVR420
Designed to deliver great ergonomics and reliable performance, this component ensures consistent regulation even under vibration. The heat resistant knob and easy maintenance in case of gasket replacement enhance user comfort, efficiency and long-term durability.
RATED PRESSURE
280 bar
28 MPa
4060 psi
PERMISSIBLE PRESSURE
310 bar
31 MPa
4500 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
90 °C
200 °F
INLET
3/8 NPT M
OUTLET
3/8 NPT M
NOZZLE MATERIAL
Brass
Zoom
Features
P/N
Item
Type
Ø Nozzle mm
Ø Hosetail mm
Ø Hosetail in
Weight
Pz
g
oz
0203006000
MV420
FIXED
1.6
7
0,27
115
4
10
0203006010
MV420
FIXED
1.8
7
0,27
115
4
10
0203006020
MV420
FIXED
2.1
7
0,27
115
4
10
0203006030
MV420
FIXED
2.3
7
0,27
115
4
10
0203006100
MVR420
ADJUSTABLE
1.6
7
0,27
150
5.3
10
0203006110
MVR420
ADJUSTABLE
1.8
7
0,27
150
5.3
10
0203006120
MVR420
ADJUSTABLE
2.1
7
0,27
150
5.3
10
0203006130
MVR420
ADJUSTABLE
2.3
7
0,27
150
5.3
10
Highlights

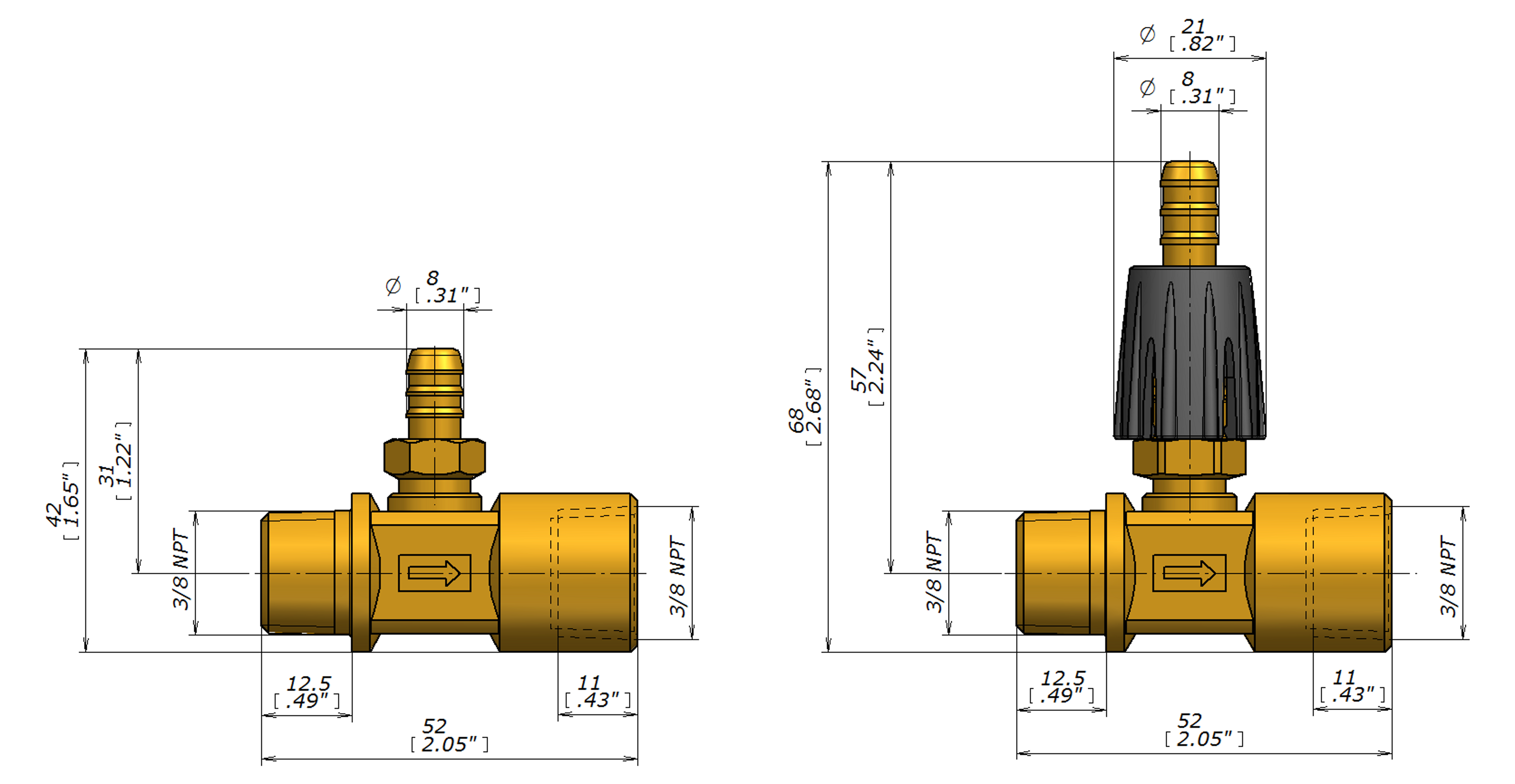

Schemas
