MV410-MVR410
Designed to deliver great ergonomics and maximum reliability, this component ensures consistent regulation even under vibration. The heat resistant knob and easy maintenance in case of gasket replacement help optimize performance and long-term durability.
RATED PRESSURE
280 bar
28 MPa
4060 psi
PERMISSIBLE PRESSURE
310 bar
31 MPa
4500 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
90 °C
200 °F
INLET
3/8 NPT F
OUTLET
3/8 NPT M
NOZZLE MATERIAL
Brass
Zoom
Features
P/N
Item
Type
Ø Nozzle mm
Ø Hosetail mm
Ø Hosetail in
Weight
Pz
g
oz
0203005000
MV410
FIXED
1.6
7
0,27
111
3.9
10
0203005010
MV410
FIXED
1.8
7
0,27
111
3.9
10
0203005020
MV410
FIXED
2.1
7
0,27
111
3.9
10
0203005030
MV410
FIXED
2.3
7
0,27
111
3.9
10
0203005100
MVR410
ADJUSTABLE
1.6
7
0,27
149
5.2
10
0203005110
MVR410
ADJUSTABLE
1.8
7
0,27
149
5.2
10
0203005120
MVR410
ADJUSTABLE
2.1
7
0,27
149
5.2
10
0203005130
MVR410
ADJUSTABLE
2.3
7
0,27
149
5.2
10
Highlights

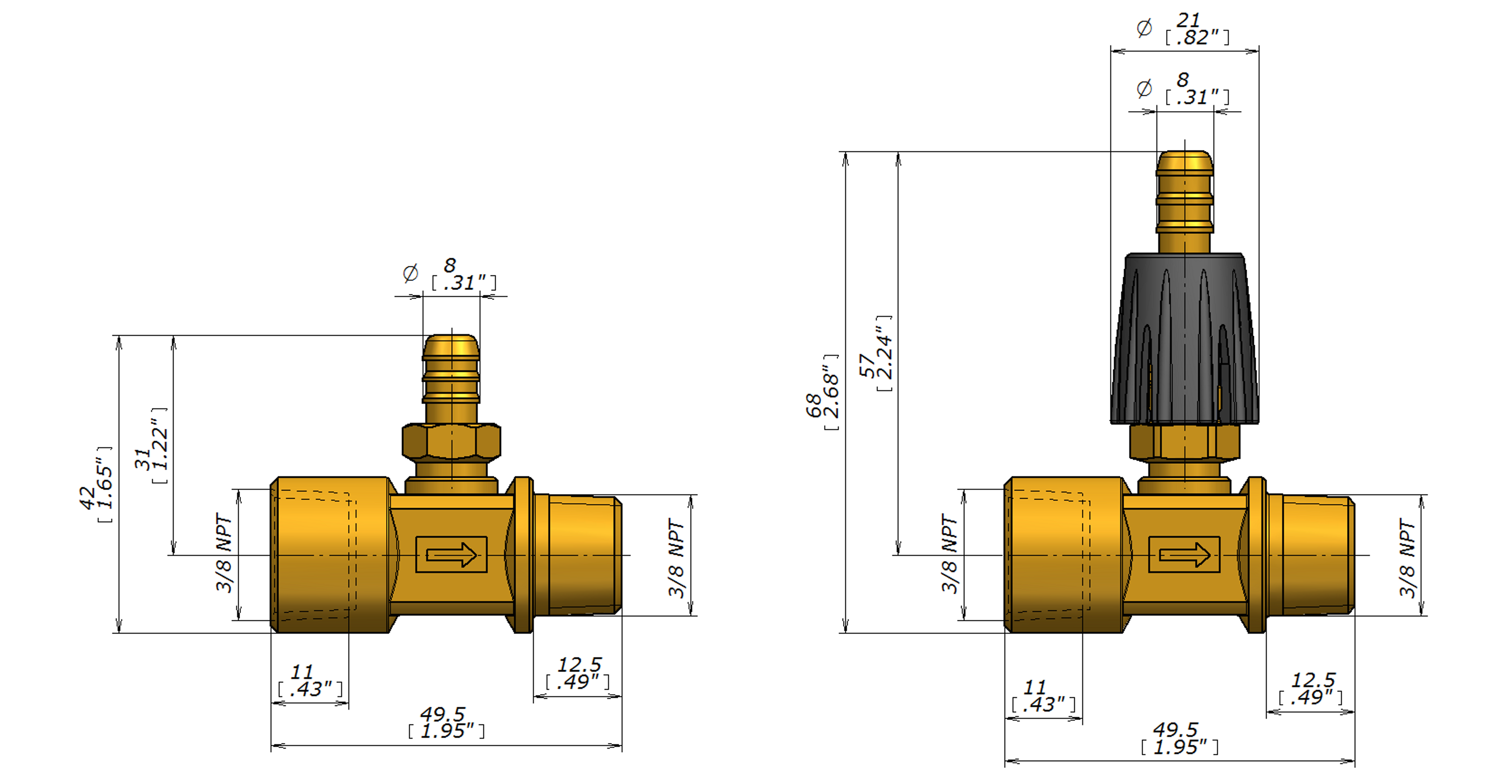

Schemas
Replacements
