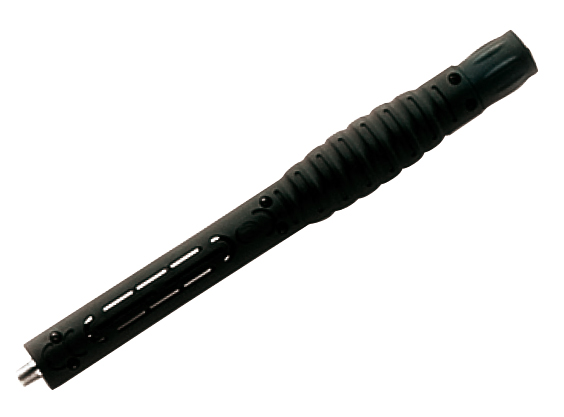

MV181 WITH PIPE
RATED PRESSURE
310 bar
31 MPa
4500 psi
PERMISSIBLE PRESSURE
350 bar
35 MPa
5000 psi
RATED FLOW
40 l/min
10.5 USGpm
RATED TEMPERATURE
150 °C
302 °F
Zoom
Features
P/N
Inlet
Outlet
Pipe material
Lenght mm
Lenght in
Weight
Pz
g
oz
0202000100
G 1/4 M
M22x1,5 F
Zinc plated Steel
365
14.5
400
14.1
20
0202000110
G 1/4 M
M22x1,5 F
Stainless Steel
365
14.5
400
14.1
20
