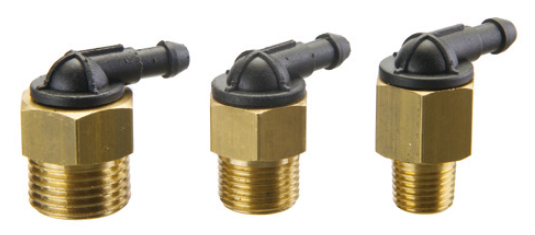

ML610
Ideal for pump overheating protection during by-pass operating conditions, this component ensures reliable and continuous operation. The highly reliable thermostatic element, brass body, and orientable hose barb for directing the water discharge flow provide efficient performance and long-lasting durability.
PERMISSIBLE PRESSURE
10 bar
1 MPa
145 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
56 °C
133 °F
PUMP'S MINIMUM SUCTION PRESSURE
'0,5 bar
'0,05 MPa
7.3 psi
Zoom
Features
P/N
Inlet
Ø Outlet mm
Ø Outlet in
Weight
Pz
g
oz
4073601005
G 1/4 M
7.5
0,30
40
1.4
20
0215010440
G 1/2 M
7.5
0,30
53
1.87
20
0215010450
G 3/8 M
7.5
0,30
31
1.09
20
0215010460
1/4 NPT M
7.5
0,30
32
1.13
20
4073601000
3/8 NPT M
7.5
0,30
35
1.23
20

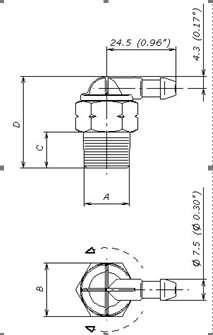

Schemas
