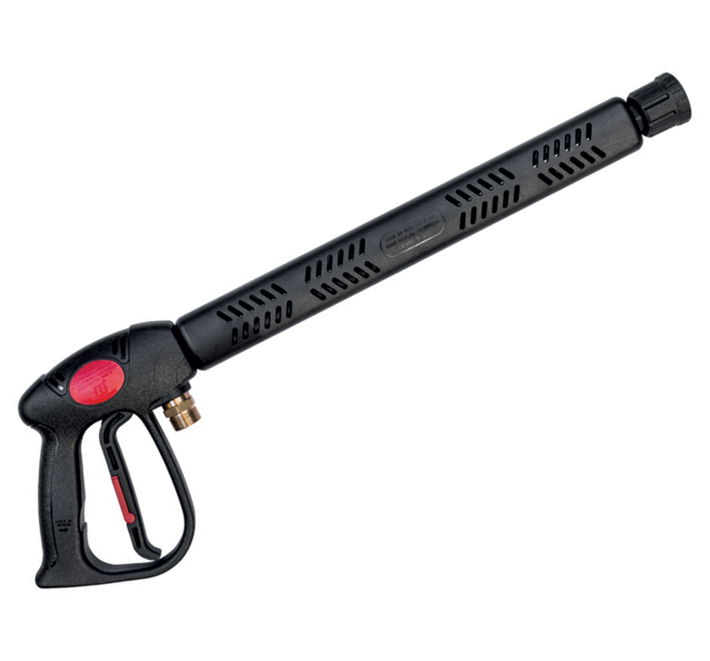

ML330+EXTEN. L35+ARF SHORT
RATED PRESSURE
280 bar
28 MPa
4060 psi
PERMISSIBLE PRESSURE
310 bar
31 MPa
4500 psi
RATED FLOW
40 l/min
10.6 USGpm
RATED TEMPERATURE
160 °C
320 °F
Zoom
Features
P/N
Inlet
Outlet
Weight
Pz#1
g
oz
4013302023
G 3/8 F
ARF M22x1,5 F Short
760
26.8
20
4013302022
3/8 NPT F
ARF M22x1,5 F Short
760
26.8
20
4013302021
M22x1,5 M
ARF M22x1,5 F Short
765
27
20
4013302024
SW STD G 3/8 F
ARF M22x1,5 F Short
816
28.8
20
4013302025
SW STD M22x1,5 M
ARF M22x1,5 F Short
821
29
20
4013302026
SW STD 3/8 NPT F
ARF M22x1,5 F Short
812
28.6
20
4013302027
SW STD G 3/8 M
ARF M22x1,5 F Short
856
30.2
20
