MULTIFUNCTION LANCE 3 JET

The Multifunction 3 Jet lance has been designed mainly for the fire-fighting applications because it allows to use the same tool with three different functionality: cone jet, fan jet and foam jet.

The Multifunction 3 Jet lance is equipped with an ergonomic handle that allows the opening and closing of the liquid with minimal effort.

The gun is equipped with a quick-release, high pressure stainless steel ball quick coupling that allows to use it with other lances.

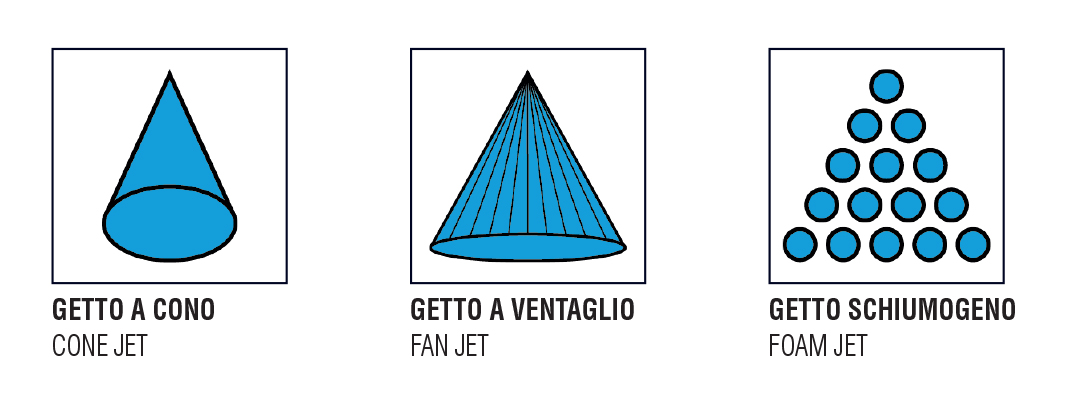

The nozzle selection is suggested by the images at the beginning of the body. The nozzle changeover must be made with a closed gun, and by rotating the lance body, positioning it on the image of the job function desired.

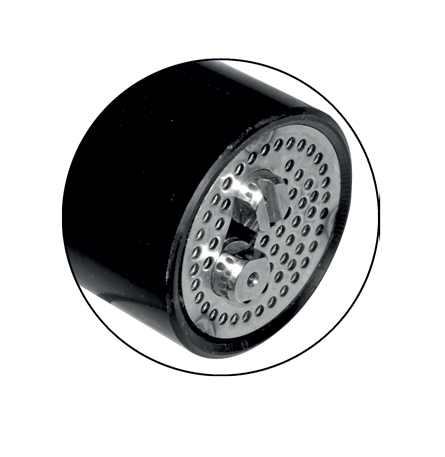

For Fan and Foam jet, there is the possibility of stretching the jet by moving the black cylindrical cap forward, creating an air intake that increases the spray jet for the Fan function, and the volume and density for the Foaming.

RATED PRESSURE
250 bar
25 MPa
3650 psi
PERMISSIBLE PRESSURE
280 bar
28 MPa
4050 psi
RATED FLOW
50 l/min
13.2 USGpm
RATED TEMPERATURE
60 °C
140 °F
PIPE MATERIAL
Stainless Steel
Photo of the product MULTIFUNCTION LANCE 3 JET
Zoom
Photo preview of the product MULTIFUNCTION LANCE 3 JET
Features
P/N
Inlet
Nozzle size
Weight
Pz
Repair kit
g oz
4017000067
SW TOP G 3/8 F
045
2280 80.42
1
4019900105
4017000105
SW STD G 3/8 F
055
2280 80.42
1
4019900106
4017000068
SW TOP G 3/8 F
065
2280 80.42
1
4019900107
4017000106
SW TOP G 3/8 F
08
2280 80.42
1
4019900108
4017000117
SW TOP G 3/8 F
11
2280 80.42
1
4019900109
4017000107
SW TOP G 3/8 F
15
2280 80,,42
1
4019900110
Highlights
Highlights of the product MULTIFUNCTION LANCE 3 JET
Highlights of the product MULTIFUNCTION LANCE 3 JET
