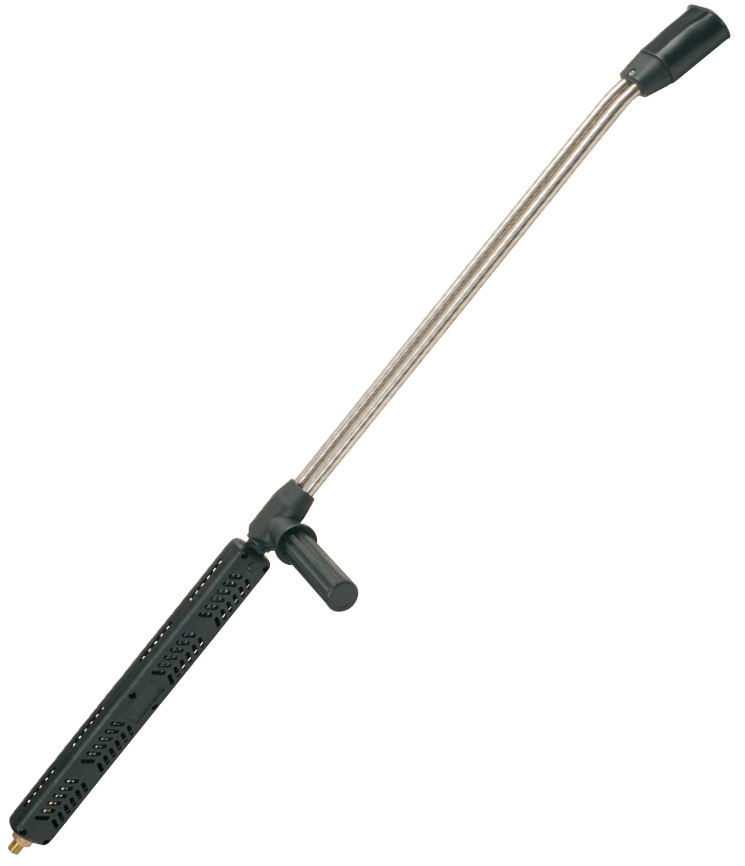

LD-L35
RATED PRESSURE
250 bar
25 MPa
3625 psi
PERMISSIBLE PRESSURE
280 bar
28 MPa
4060 psi
RATED FLOW
40 l/min
10.6 USGpm
RATED TEMPERATURE
150 °C
302 °F
Zoom
Features
P/N
Inlet
Outlet
Pipes - Material
Lenght mm
Lenght in
Weight
Pz
g
oz
4030600003
R 1/4 M
1/4 NPT F
1/8" - Zinc plated Steel
1019
40.1
1320
45.6
10
4030600005
R 1/4 M
1/4 NPT F
1/4" - Zinc plated Steel
1019
40.1
1355
47.8
10
4030800003
R 1/4 M
1/4 NPT F
1/8" - Stainless Steel
1019
40.1
1355
45.6
10
4030800005
R 1/4 M
1/4 NPT F
1/4" - Stainless Steel
1019
40.1
1355
47.8
10
