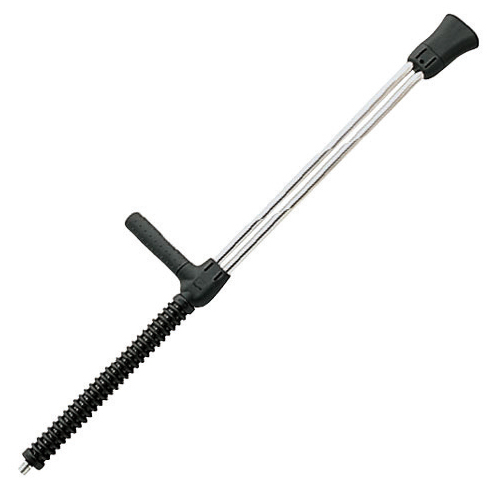

LD MV30
RATED PRESSURE
250 bar
25 MPa
3625 psi
PERMISSIBLE PRESSURE
280 bar
28 MPa
4060 psi
RATED FLOW
40 l/min
10.6 USGpm
RATED TEMPERATURE
150 °C
302 °F
PIPE MATERIAL
Stainless Steel
Zoom
Features
P/N
Inlet
Outlet
Pipes - Material
Lenght mm
Lenght in
Weight
Pz
g
oz
0202003020
G 1/4 M
G 1/4 F
1/4" - Stainless Steel
1000
40
1250
44.1
10
0202004640
G 1/4 M
G 1/4 F
1/4" - Stainless Steel
1100
43
1135
44
10
4043700042
G 1/4 M
G 1/4 F
1/4" - Zinc Plated Steel
787
31
1300
45.8
10
