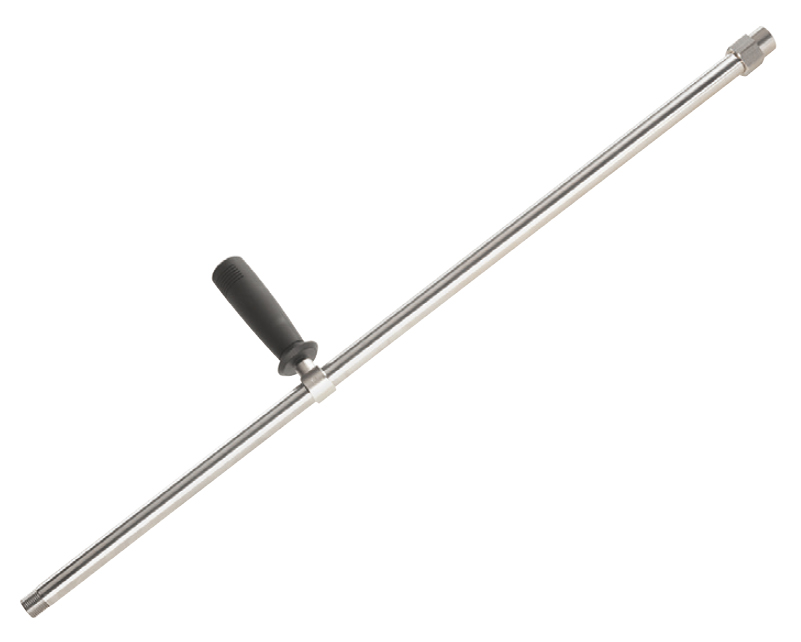

L 200
RATED PRESSURE
500 bar
50 MPa
7250 psi
PERMISSIBLE PRESSURE
560 bar
56 MPa
8100 psi
RATED FLOW
200 l/min
53 USGpm
RATED TEMPERATURE
40 °C
104 °F
PIPE MATERIAL
Stainless Steel
Zoom
Features
P/N
Inlet
Outlet
Lenght mm
Lenght in
Pipe length
Weight
Pz
mm
in
g
oz
4030500007
G 1/2 M
1/4 NPT F
420
16.5
400
15.75
790
28
1
4030500008
G 1/2 M
1/4 NPT F
820
32.3
800
31.5
1325
47
1
4030500009
G 1/2 M
1/4 NPT F
1220
48
1200
47.25
1900
67
1
Optional accessories
P/N
4059500021
P/N
4059500021
Uscita:
G 1/4 M
Descrizione:
NOZZLE HOLDER KIT - L 200
Pz:
1
