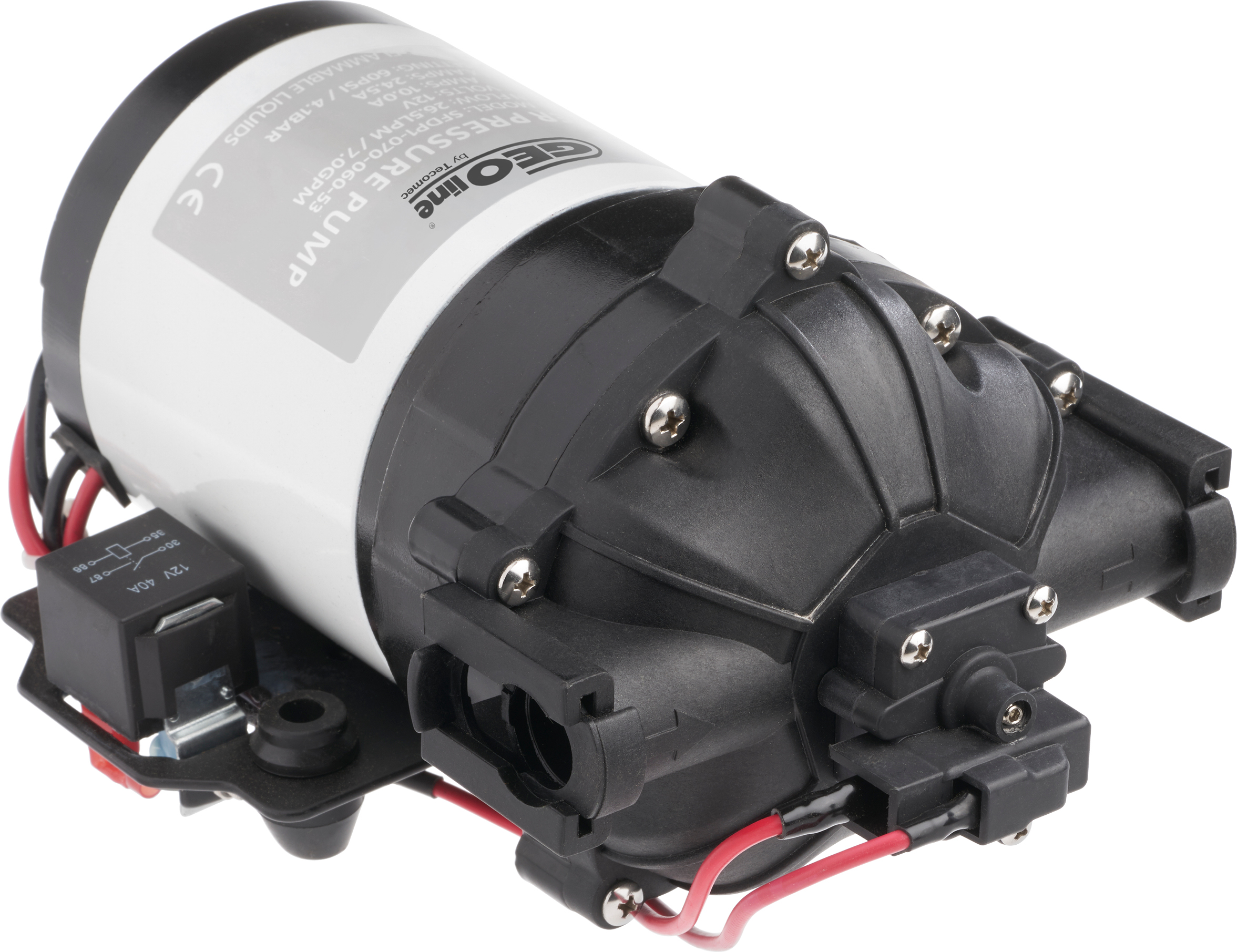

GEOPUMP PRO 26
Electric Pump 12V
Features
- Inlet/outlet 3/4” quick attach
- For continuous duty cycles
- 5 chamber diaphragm pump, self-priming, it runs dry
- Viton® valves, TPE diaphragm
- Control type: pressure switch & by-pass
Suitable for
- agricultural/industrial spraying
- de-icing
- water treatment
- food & beverage
- equipment washdown
- liquid fertilizer
- construction equipment
- dust suppression
The kit includes filters and fittings: please see supplied accessories.
Zoom
For crop sprayers
For low-volume spraying machines
CE
Features
P/N
Flow rate l/min
Head m
Temperature °C
Weight
Power supply Vdc
Absorption A
Pack
kg
8411028
21
1,8
60
4,5
12
24,5
1

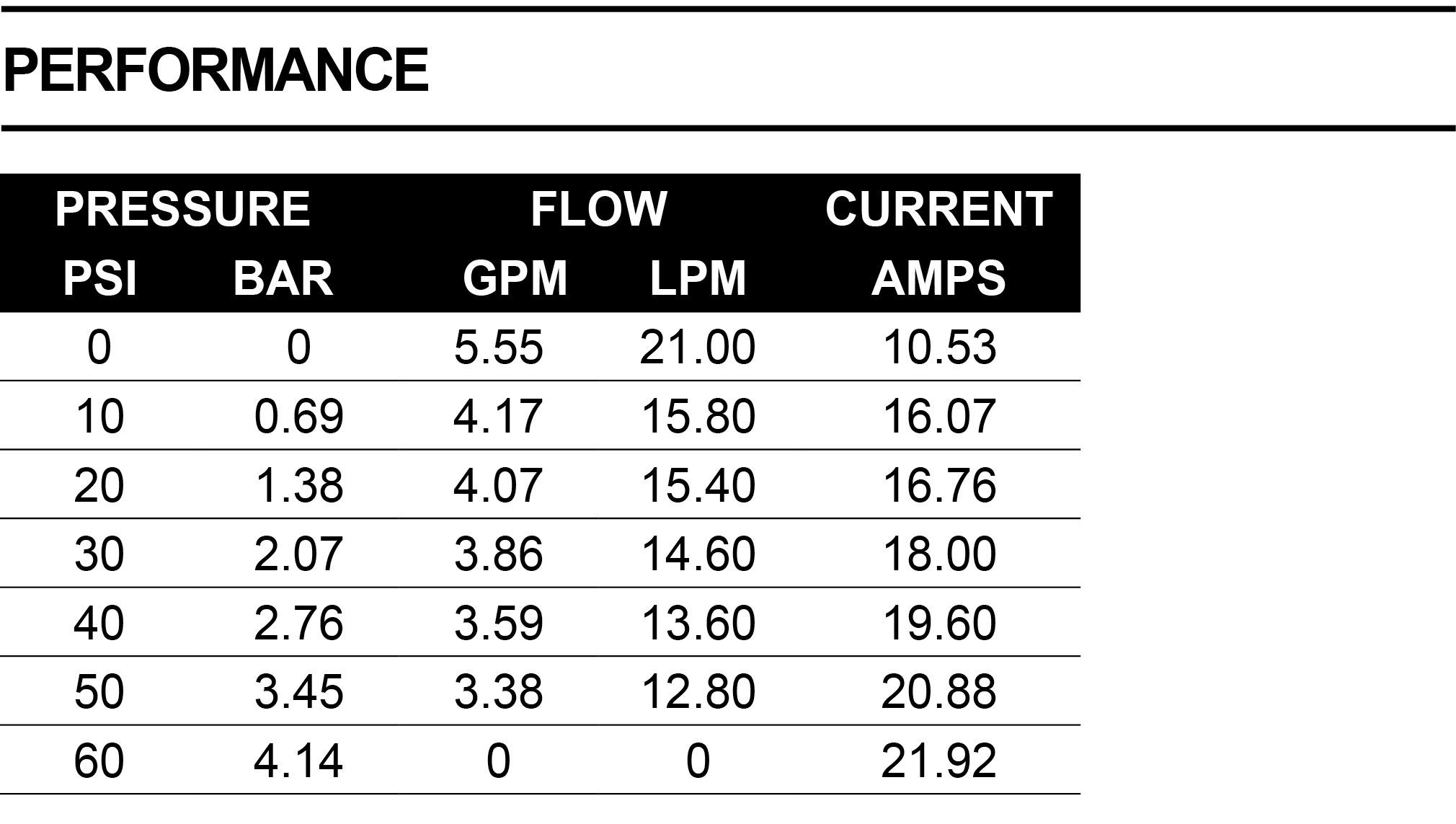

Highlights

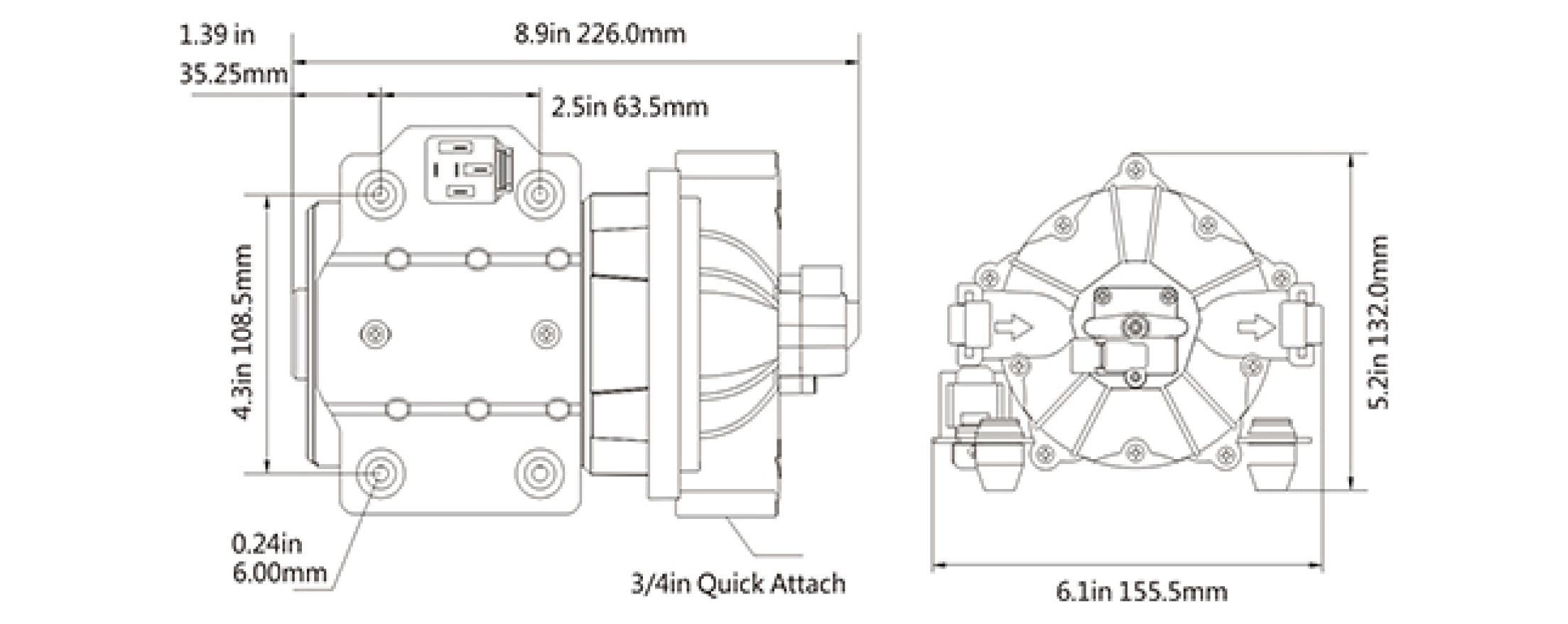

Schemas
Supplied accessories
P/N
8392103
Optional accessories
P/N
8386040
P/N
8302632
P/N
8392103
Tipo:
Kit 1 (fittings + filter)
Attacco:
1x 3/4" Male/female Quick Connection 50 mesh filter
2x elbow 3/4" Quick Connection x 1/2" barb
2x straight 3/4" Quick Connection x 1/2" barb
2x elbow 3/4" Quick Connection x 1/2" barb
2x straight 3/4" Quick Connection x 1/2" barb
P/N
8386040
Tipo:
Pressure regulator
Attacco:
3/4" Quick connection
P/N
8302632
Tipo:
Pressure gauge
⌀ 50 mm
0-6 bar
⌀ 50 mm
0-6 bar
Attacco:
G 1/8 M
