Pressure cut-off device

This device is manufactured in accordance with the EN standard, limiting overpressure to 20% more than working pressure, bypassing exceeding liquid to the tank.

Easy to assemble thanks to the swivel inlet fitting and also provided with anti-tampering device.

This device must be fitted on pumps assembled on a complete spraying machine or can be sold as original spare part of the same kind of pump.

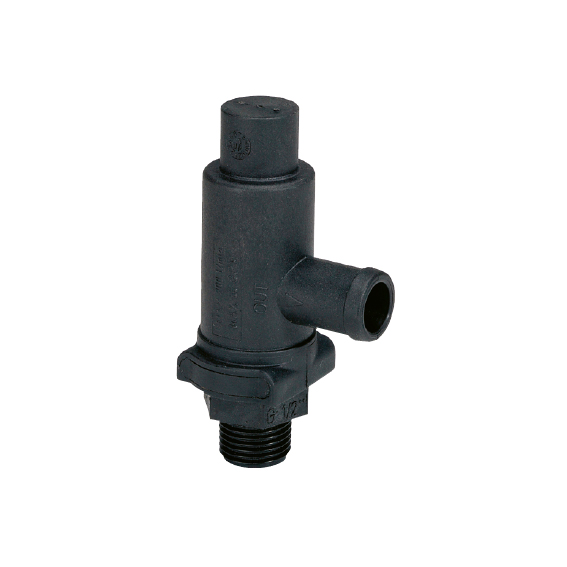

Photo of the product Pressure cut-off device
Zoom
Photo preview of the product Pressure cut-off device
Feature of the product Pressure cut-off device
For crop sprayers
Feature of the product Pressure cut-off device
Per attomizzatori
Feature of the product Pressure cut-off device
For low-volume spraying machines
Feature of the product Pressure cut-off device
MODULAR COMPONENT
Features
Highlights
Schemas
Features
P/N
Color
Pump flow rate l/min
Operating pressure bar
Temperature °C
a
B Ø mm
Pack
8300000
0
20÷100
10
60
G 3/8
13
5
8300001
Green
20÷100
20
60
G 3/8
13
5
8300002
Blue
20÷100
30
60
G 3/8
13
5
8300003
Orange
20÷100
40
60
G 3/8
13
5
8300004
Red
20÷100
50
60
G 3/8
13
5
8300005
0
100÷200
10
60
G 1/2
19
5
8300006
Green
100÷200
20
60
G 1/2
19
5
8300007
Red
100÷200
50
60
G 1/2
19
5
8300008
0
200÷300
10
60
G 3/4
25
5
8300009
Green
200÷300
20
60
G 3/4
25
5
8300011
Red
100÷150
50
60
G 1/2
19
5
8300012
Red
150÷260
50
60
G 3/4
25
5
Highlights

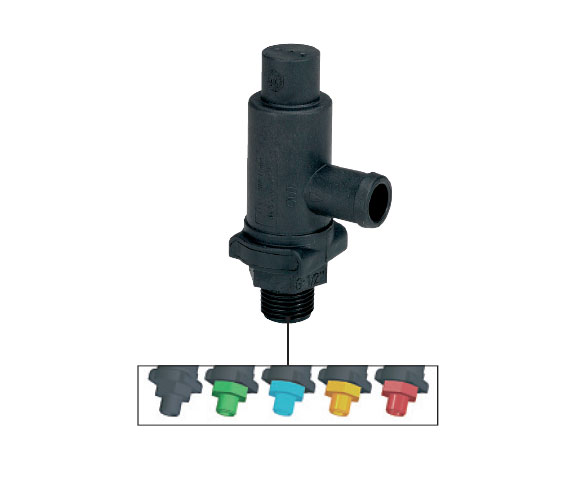

Highlights of the product Pressure cut-off device
Schemas

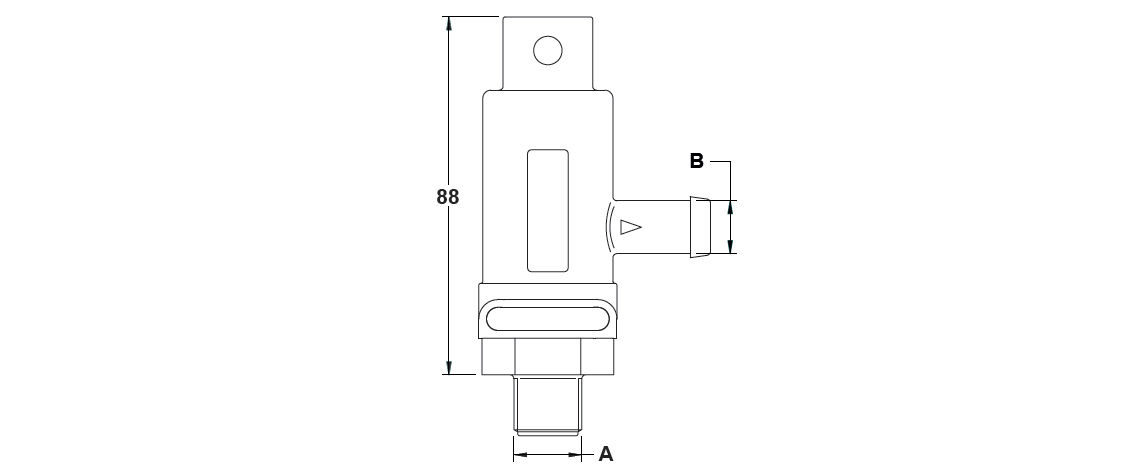

Schemes of the product Pressure cut-off device
