SUITABLE TO GS 260 GS 240 Spray Rate Spray Rate Mini

GPS Smart Antenna, Speedometer ,

Accelerometer and 4G Cloud Connect

The antenna provides, on dedicated channels,

GPS position and speed of the vehicle using a

frequency signal and 6-axis accelerometer signal.

It also includes CAN channel for exchange of

information with the rate controller. The antenna

can connect with the 4G Internet network and,

therefore, to a dedicated app for data exchange on

the Tecomec Cloud.

With the product, application data can be

exchanged in line with “4.0” requirements.

- GPS signals from the following satellite

constellations: GPS, GLONASS, BeiDou,

Galileo and QZSS

- Capable of SBAS (WAAS, EGNOS, MSAS,

GAGAN);

- Support 99-channel GNSS;

- Electronic 6-Axis accelerometer for better

starting measurement accuracy and transmitting

the inclination of vehicles;

- Up to 10Hz update rate;

- Ultra low power consuption;

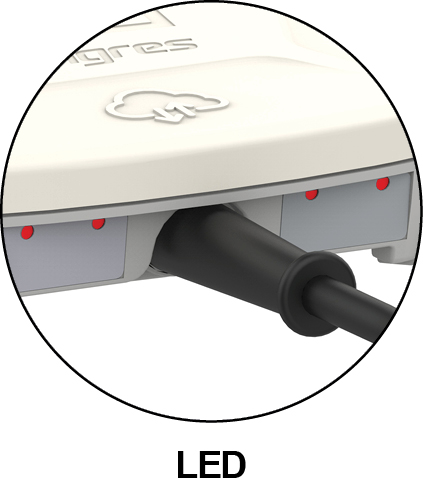

- Operating indicator LED;

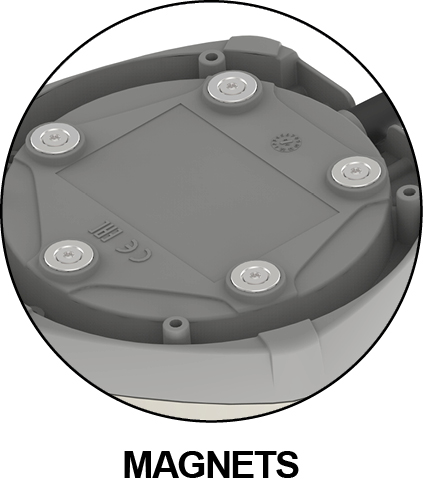

- Built-in magnets for a quick installation;

- Waterproof;

- Available with M12 connector for

Geosystem 260, Geosystem 250,

Geosystem 240, Geosystem 190 computers;

- Power supply voltage 12 Volts;

- Protocol NMEA 0183;

- Output 1 GPS Position: RS232;

- Output 2 Speed: square wave

open collector 1cm / pulse

- CAN connection for data exchange with

the vehicle

- Network connection: WiFi, Bluetooth,

- Includes three-year subscription for data

exchange with the Tecomec Cloud, based on

the Amazon Web Services platform
