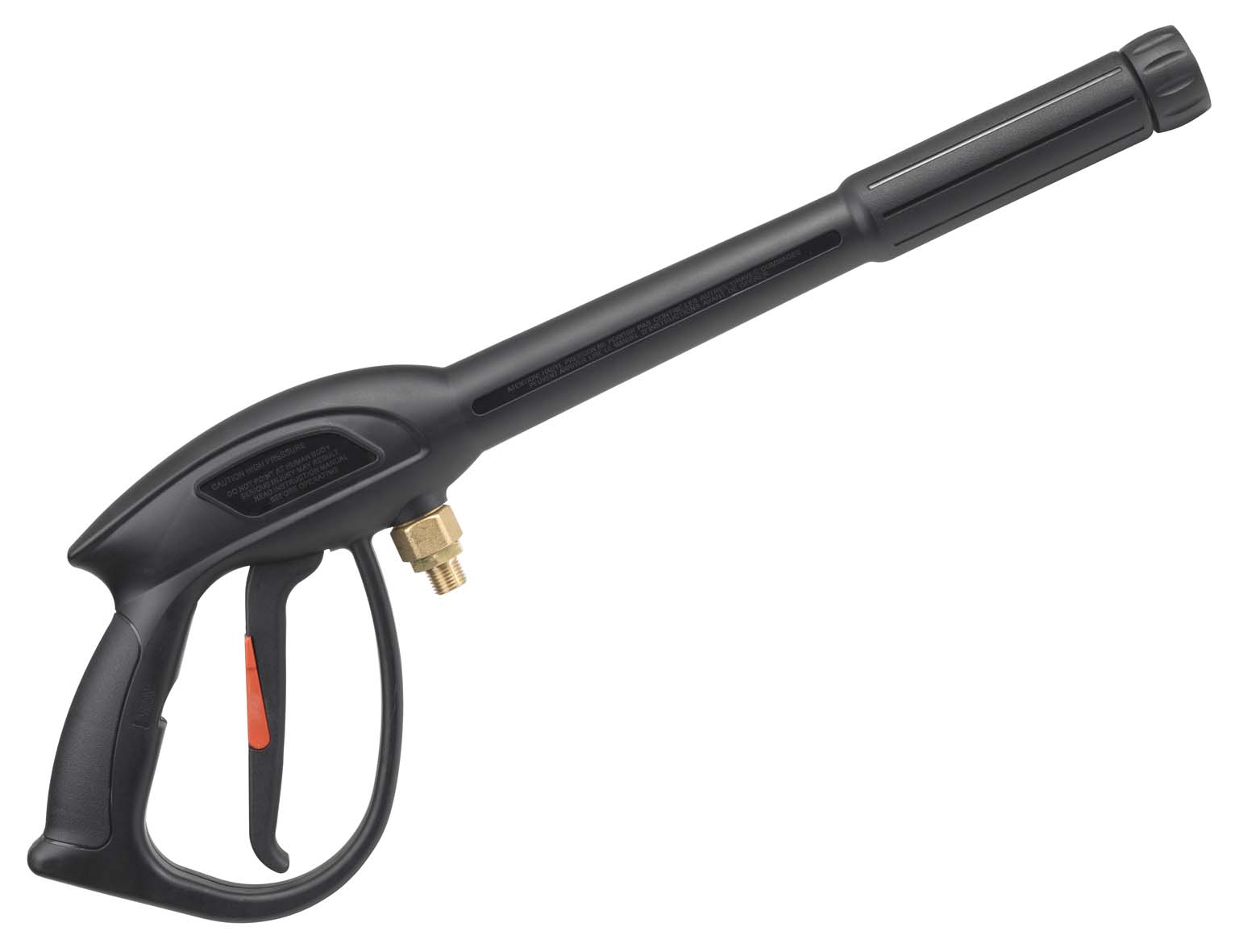

BIT106
Front entry.
Stainless Steel seat.
Length 500 mm.
RATED PRESSURE
190 bar
19 MPa
2755 psi
PERMISSIBLE PRESSURE
210 bar
21 MPa
3046 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
100 °C
212 °F
Zoom
Features
P/N
Inlet
Outlet
Weight
Pz
g
oz
4020003019
M22x1,5 M
M22x1,5 F short
480
14.8
25
4020003021
G 3/8 F
M22x1,5 F short
480
14.8
25
4020003022
3/8 NPT F
M22x1,5 F short
480
14.8
25
4020003023
G 3/8 M
M22x1,5 F short
480
14.8
25
4020003024
G 1/4 M
M22x1,5 F short
480
14.8
25
