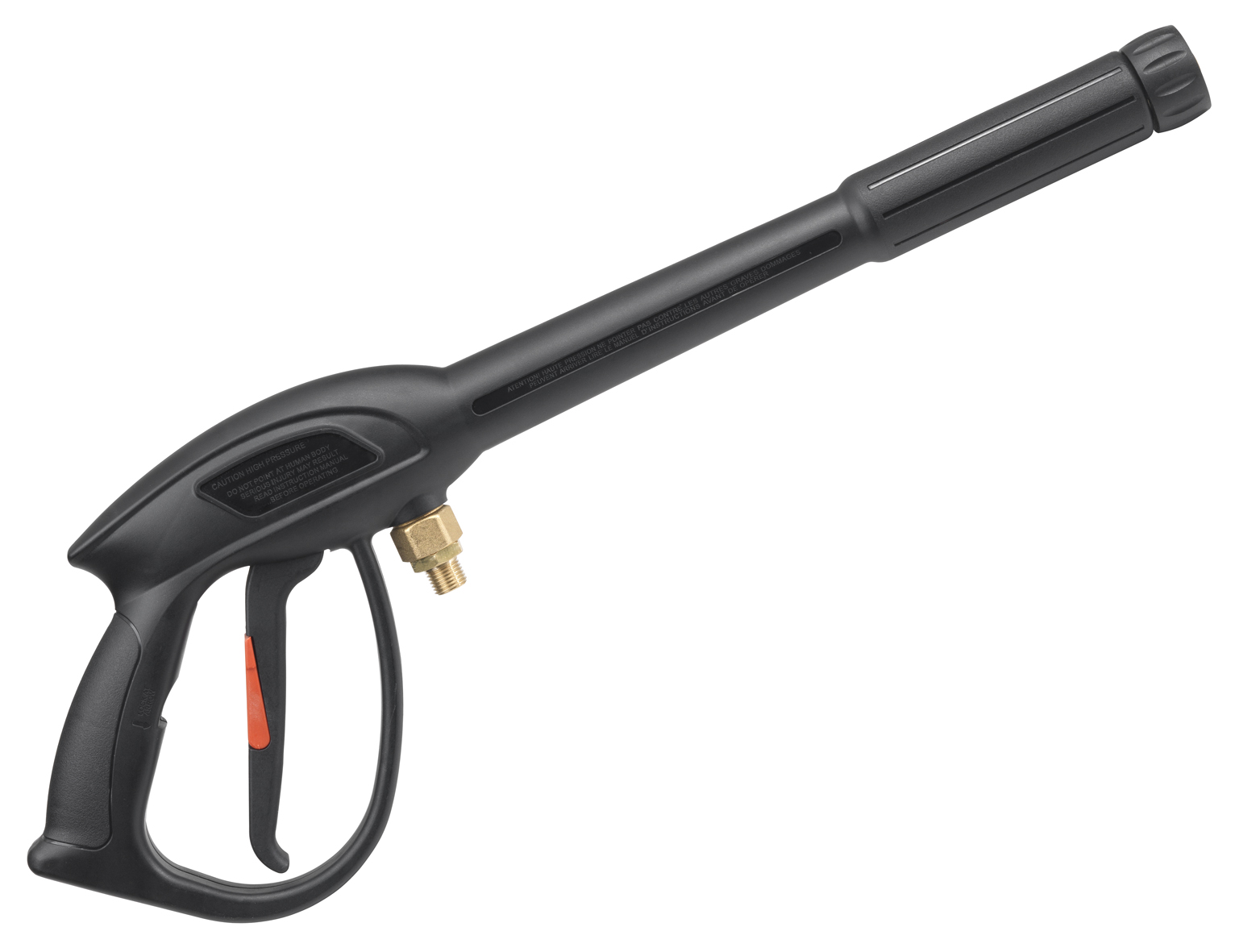

BIT105
Front entry.
Length 500 mm.
RATED PRESSURE
186 bar
18.6 MPa
2700 psi
PERMISSIBLE PRESSURE
207 bar
20.7 MPa
3000 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
60 °C
140 °F
Zoom
Features
P/N
Inlet
Outlet
Weight
Pz
g
oz
4020003009
G 3/8 M
M22x1,5 F Short
480
14.8
25
4020003011
G 1/4 M
M22x1,5 F Short
480
14.8
25
4020003013
M22x1,5 M
M22x1,5 F Short
480
14.8
50
4020003015
3/8 NPT F
M22x1,5 F Short
480
14.8
50
4020003017
G 3/8 F
M22x1,5 F Short
480
14.8
50
