AR4
Manufactured with a brass body, brass nipple and handle brass insert or with stainless steel body, brass nippe and handle insert stainless steel the AR4 provides excellent corrosion resistance and reliable performance in professional applications. The stainless hardened steel pin and waterproof O-rings in FPM (Viton) ensure effective sealing, delivering consistent performance and long service life.
RATED PRESSURE
360 bar
36 MPa
5220 psi
PERMISSIBLE PRESSURE
400 bar
40 MPa
5800 psi
RATED FLOW
45 l/min
12 USGpm
RATED TEMPERATURE
150 °C
302 °F
Zoom
Features
P/N
Type
Inlet
Material
O-ring material
Weight
Pz
g
oz
4101202009
(A)
G 1/4 M
Brass + Nylon
VITON®
225
7.73
5
4101202015
(A)
G 1/4 F
Brass + Nylon
VITON®
230
8,11
5
4101202008
(A)
G 1/4 M
Brass + Stainless Steel + Nylon
VITON®
219
7.83
5
0121720120
(B)
G 1/4 F
Hardened stainless steel
/
76
2.7
5
4101400002
(C)
G 1/4 M
Hardened stainless steel
/
81
2.9
5
Highlights

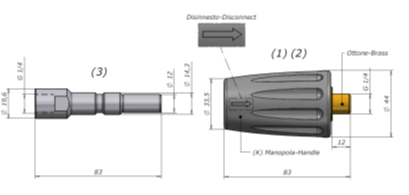

Schemas
