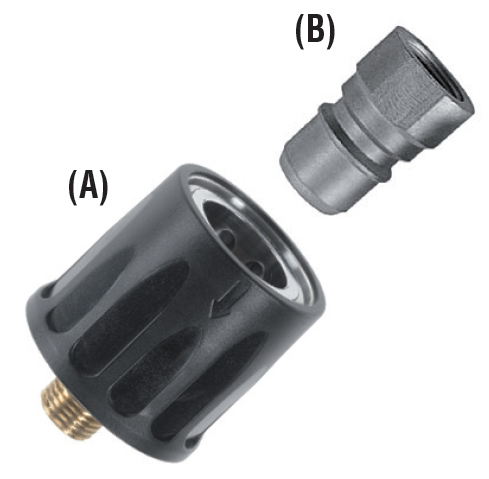

AR36 with protection handle
Manufactured with a stainless steel structure the AR4 provides excellent corrosion resistance and reliable performance in professional applications. The hardened stainless steel pin and waterproof O-rings in FPM (Viton) with an ergonomic shock-proof plastic material knob ensure effective sealing, delivering consistent performance and long service life.
RATED PRESSURE
350 bar
35 MPa
5075 psi
PERMISSIBLE PRESSURE
390 bar
39 MPa
5650 psi
RATED FLOW
50 l/min
13.2 USGpm
RATED TEMPERATURE
150 °C
302 °F
Zoom
Features
P/N
Type
Inlet
Material
Weight
Pz
g
oz
4101204000
(A)
G 1/4 M
label[VAL_inox] + Nylon
180
6.4
20
0121720070
(B)
G 3/8 F
label[VAL_ACCIAIO INOX]
52
1.8
20
4101204004
(A)
G 1/2 M
Stainless Steel + Nylon
227
8
20
4101400015
Replaces: I00700041
(B)
G 1/2 F
Stainless Steel
113
4.0
20
4101400017
(B)
G 1/4 F
Stainless Steel
74
2.6
20

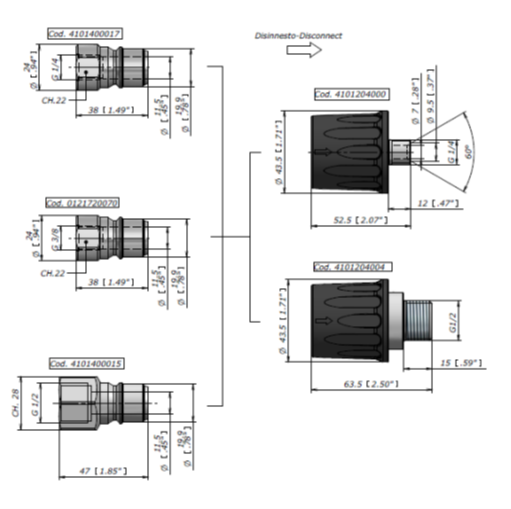

Schemas
