AR1
Manufactured with a brass body or with stainless steel, the AR1 provides excellent corrosion resistance and reliable performance in professional applications. The waterproof O-rings in NBR ensures effective sealing, delivering consistent performance and long service life.
RATED PRESSURE
250 bar
25 MPa
3600 psi
PERMISSIBLE PRESSURE
280 bar
28 MPa
4060 psi
RATED FLOW
40 l/min
10.6 USGpm
RATED TEMPERATURE
150 °C
300 °F
Zoom
Features
P/N
Type
Inlet
AR1 plug
Material
Weight
Pz
NBR O-ring repair kit
Pz#2
Pz#1
g
oz
0212002220
(A)
G 1/4 F
/
Brass
65
2.3
20
4139900049
20
4101200005
(A)
G 1/4 M
/
Stainless Steel
20
4139900049
20
4101400005
(B)
/
1/4 NPT F
Stainless Steel
81
2.9
20
380603
(B)
/
1/4 NPT M
Zinc plated Steel
31
1.1
20
380602
(B)
/
1/4 NPT F
Zinc plated Steel
32
1.2
20
380609
(B)
/
G 1/4 M
Zinc Plated Steel
32
1.1
/
/
4039900054
(A)
1/4 NPT F
/
Brass
80
2.8
20
4139900049
20
4101200001
(A)
1/4 M
/
Brass
84
2.9
20
4139900049
20
4101200009
(A)
1/4 NPT M
/
Brass
84
2.9
20
4139900049
20

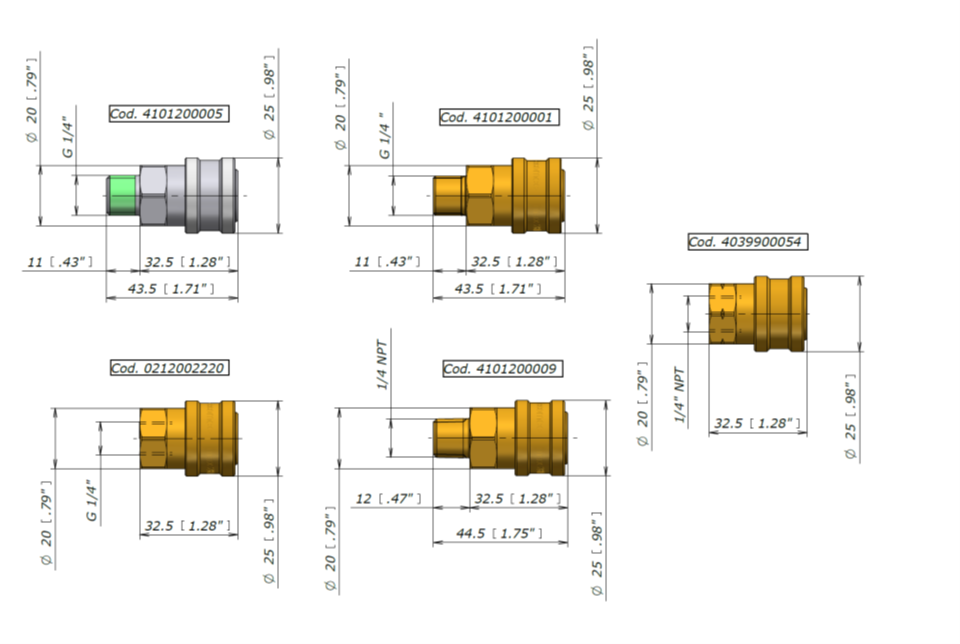

Schemas
