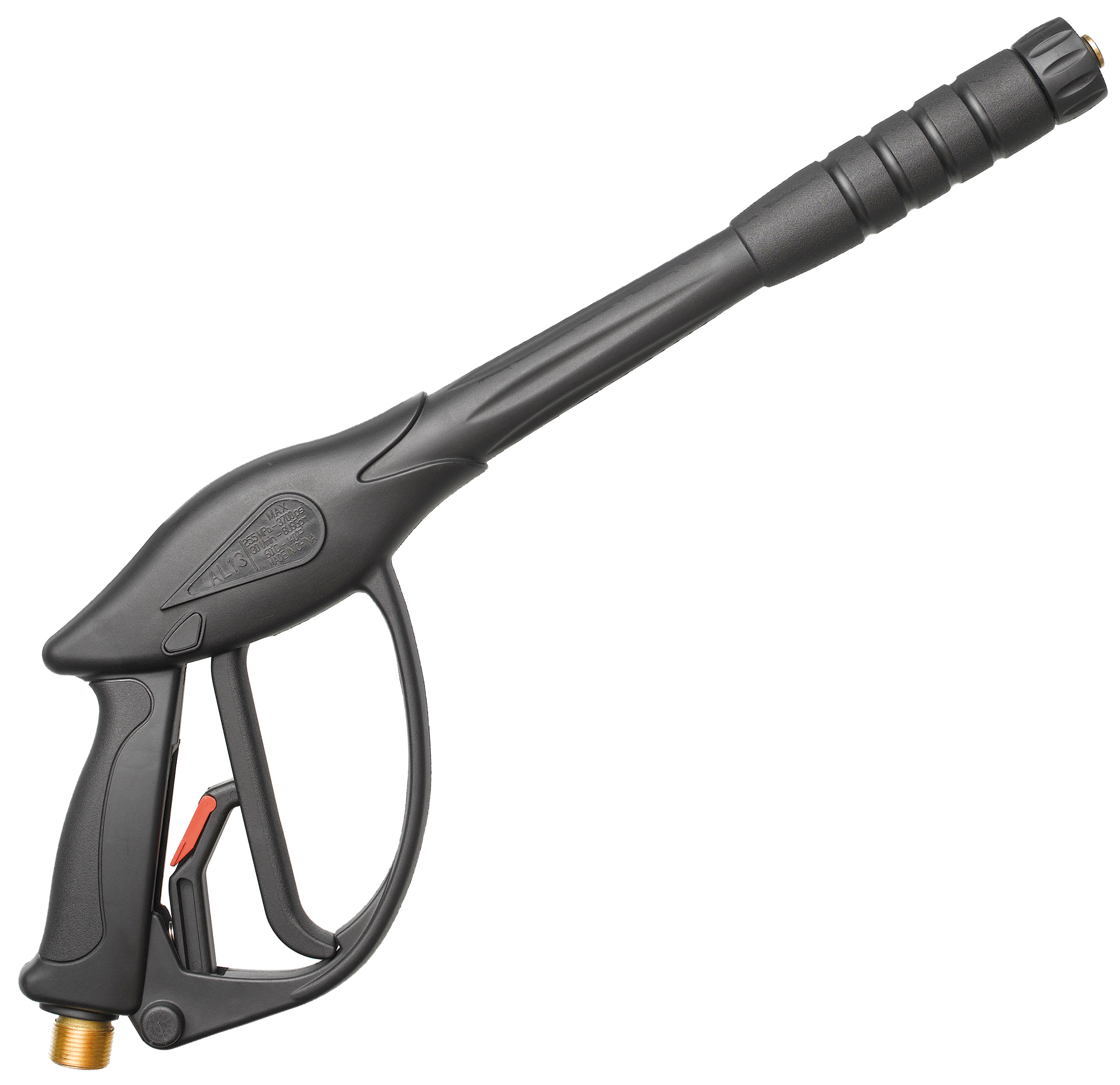

AL13
Length 500 mm
RATED PRESSURE
230 bar
23 MPa
3340 psi
PERMISSIBLE PRESSURE
255 bar
25.5 MPa
3700 psi
RATED FLOW
30 l/min
8 USGpm
RATED TEMPERATURE
60 °C
140 °F
Zoom
Features
P/N
Inlet
Outlet
Weight
Pz
g
oz
4021108007
M22x1,5 M
M22x1,5 F Short
625
22.05
25
4021108008
G 3/8 F
M22x1,5 F Short
625
22.05
25
4021108009
3/8 NPT F
M22x1,5 F Short
625
22.05
25
4021108010
G 1/4 M
M22x1,5 F Short
625
22.05
25
4021108011
G 3/8 M
M22x1,5 F Short
625
22.05
50
