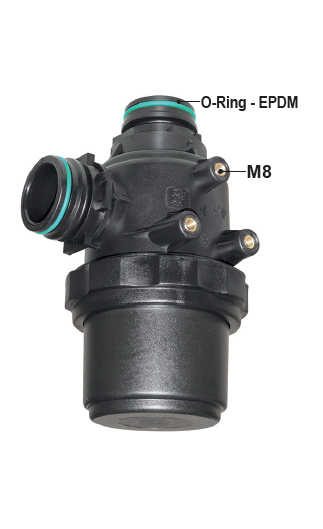

Suction filter 100 l/min. - AF
AF5
Suction filters for flow rates up to 100 l/min (26 USGpm).
- For crop sprayers
- For orchard sprayers
With fork coupling (AF5)
To complete the filter please see related products and choose the fittings according to the dimensions of the fork coupling.
Zoom
For crop sprayers
Per attomizzatori
100 l/1'
ISO
AF5 FORK
Features
P/N
F
Flow rate l/min
Filtering power Mesh
Screen material
Effective area
Pack
cm²
Sq.in
8074017
AF5
100
18
PP
90
14
20
8074018
AF5
100
32
PP
69
10.7
20
8074014
AF5
100
32
INOX
105
16.3
20
8074015
AF5
100
50
INOX
97
15
20
8074016
AF5
100
100
INOX
94
14.5
20

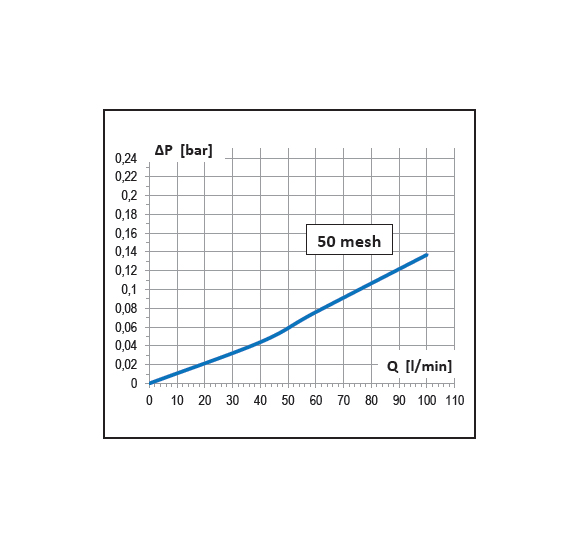

Highlights

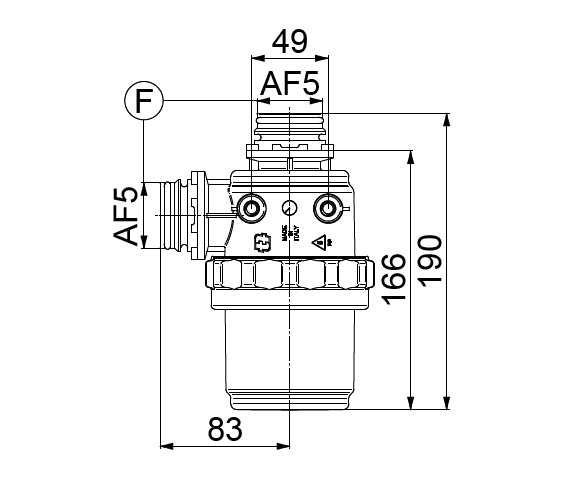

Schemas

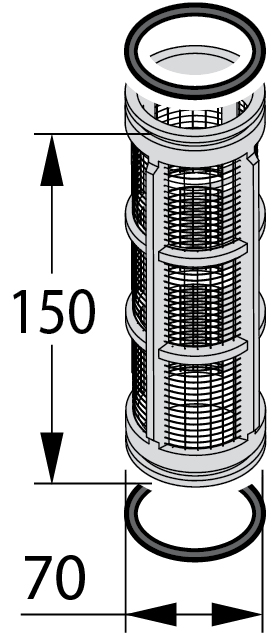

Replacements
Model
P/N
K00100037
P/N
K00100055
P/N
K00100038
P/N
K00100055
P/N
K00100039
P/N
K00100055
P/N
K00100040
P/N
K00100055
P/N
K00100041
P/N
K00100055
P/N
K00100037
Potere filtrante rete:
32
Materiale rete:
INOX
Pack:
5
P/N
K00100055
Description:
O-Ring body/ screen
Pack:
20
P/N
K00100038
Potere filtrante rete:
50
Materiale rete:
INOX
Pack:
5
P/N
K00100055
Description:
O-Ring body/ screen
Pack:
20
P/N
K00100039
Potere filtrante rete:
100
Materiale rete:
INOX
Pack:
5
P/N
K00100055
Description:
O-Ring body/ screen
Pack:
20
P/N
K00100040
Potere filtrante rete:
18
Materiale rete:
PP
Pack:
5
P/N
K00100055
Description:
O-Ring body/ screen
Pack:
20
P/N
K00100041
Potere filtrante rete:
32
Materiale rete:
PP
Pack:
5
P/N
K00100055
Description:
O-Ring body/ screen
Pack:
20
